Advantech PCIE-1816-B - 16ch, 16bit, 1MS/s PCIE Multifunction Card
by Advantech
|
|
|
|
1 MS/s, 16-bit, 16-ch Multifunction PCIE Card
- 16 analog inputs, up to 1 MS/s, 16-bit resolution
- 2 analog outputs up to 3 MS/s, 16-bit resolution
- Support Analog and Digital Trigger for AI/O
- Support Waveform generation for AO
- 24 programmable digital I/O lines
- Two 32-bit programmable counter/timers
- Onboard FIFO memory (8k samples)
- Support for Microsoft Windows 10/11 and Linux
|
|
|

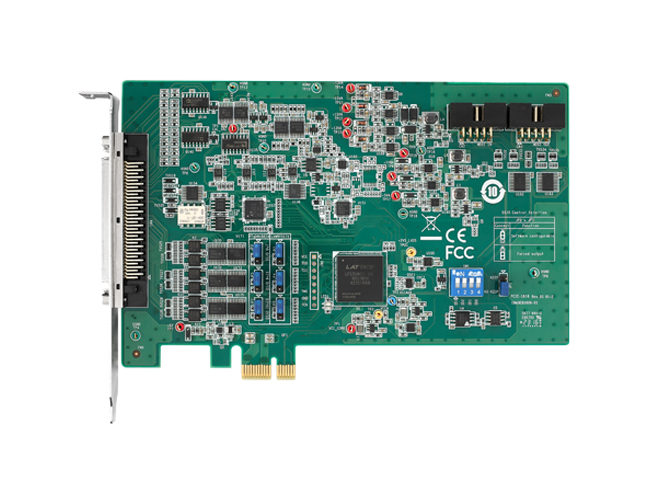

Advantech PCIE-1816-B
PCIE-1816/1816H is a 16-ch (up to 5 MS/s) multifunction DAQ card with integrated digital I/O, analog I/O, and counter functions. PCIE-1816/1816H also features analog and digital triggering support, 2-ch 16-bit analog outputs with waveform generation capability, 24-ch programmable digital I/O lines, and two 32-bit general purpose timer/counters.
|
|
|
|
