Antaira SFP-WA60-H - **HP Compatible** 1.25G Gigabit SFP Transceiver WDM-A, SM/LC/60KM/23.0dB/TX:1310nm RX:1550nm, 0~70C
by ANTAIRA
|
|
|
|
- 1550nm DFB LD
- Multi Data Rate: from 125M to 1.25Gbps, NRZ
- Single +3.3V Power Supply
- RoHS Compliant and Lead-free
- AC/AC Differential Electrical Interface
- Compliant with Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP)
- Single LC Connector
- Compliance with specifications for IEEE-802.3z Gigabit Ethernet at 1.25 Gbps
- Compliance with ANSI specifications for Fibre Channel applications at 1.06 Gbps
- Eye Safety Designed to meet Laser Class 1 comply with EN60825-1
|
|
|

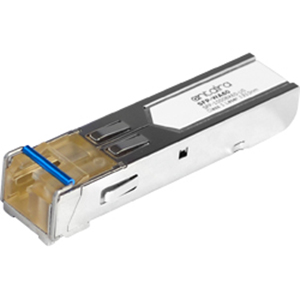

Antaira SFP-WA60-H
The SFP-WA60 is the high performance and cost-effective module for serial optical data communication applications specified for single mode of multi-rate from 125M to 1.25 Gb/s. It operates with +3.3V power supply. The module is intended for single mode fiber, operates at a nominal wavelength of Tx: 1550nm / Rx: 1310nm and complies with Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP). Each module is integrated digital diagnostics functions via an I2C serial interface ( optional ).
The module is a single fiber connector transceiver designed for use in Gigabit Ethernet applications and to provide IEEE-802.3z compliant link for 1.25Gb/s long reach applications. The characteristics are performed in accordance with Telcordia Specification GR-468-CORE.
Antaira SFP-WA60-H : 1.25G Gigabit SFP Transceiver WDM-A, SM/ LC/ 60KM/ 23.0dB/ TX: 1310nm RX: 1550nm, 0ºC~70ºC (HP compatible)
|
|
|
|
