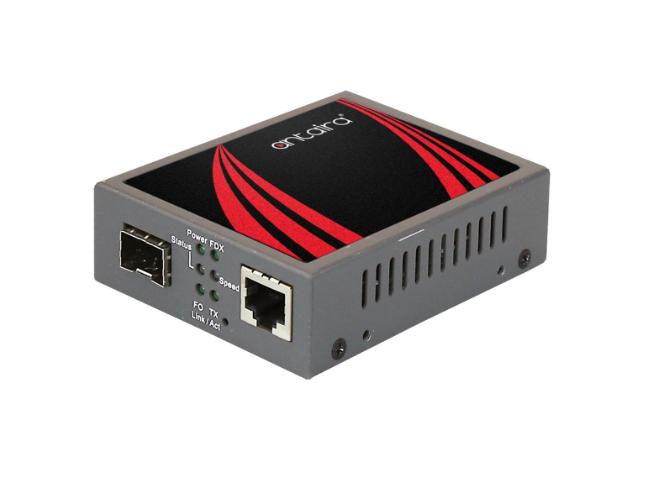

Antaira EMC-0201G-SFP - 10/100/1000T To 1000SX/LX Media Converter w/SFP Slot
by ANTAIRA

Antaira Technologies EMC-0201G-SFP is a compact gigibit fiber to 10/100/1000 Ethernet media converter. The EMC-0201G-SFP is housed in a industrial metal case and conforms to the FCC emission standards. The EMC-0201G-SFP features a standard LC fiber connector as well as the copper STP-RJ45 Ethernet connector. The EMC-0201G-SFP is fully compliant with the IEEE 802.3z 1000Base-SX/LX and IEEE 802.3ab, 1000Baes-T. The EMC-0201G-SFP features LEDs that provide indicators for Power, TP Link/ACT and Fiber Link/ACT. The EMC-0201G-SFP is a flexible gigabit media converter, capable of the ever changing environment with hot swap-able SFP ports.

Approvals	FCC Class A, CE
Connector	SFP dependent
Dimensions	71 x 94 x 26 mm (2.80 x 3.70 x 1.02 inches)
Ethernet	1 x RJ45 Interface
Fiber	SFP dependent
Humidity	5% ~ 90% non-condensing
IEEE	IEEE 802.z 1000BaseX IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX IEEE 802.3ab 1000BaseT IEEE 802.3x Flow Control
LED	Power, FDX, ACT, TP Link, Fiber Link
Link Budget	SFP dependent
Max Tx Power	SFP dependent
Min Tx Power	SFP dependent
Operating Temperature	0 ~ 50 C
Power	DC 5V, 1.5A (wall adapter 100V-240V AC)
Power Consumption	6 W
Sensitivity	SFP dependent
Storage Temperature	-20 ~ 60 C
Typical Distance	SFP dependent
Warranty	5 Years
Wavelength	SFP Dependent
Weight	0.6 Kg
