ICP DAS TPD-432F - 4.3" Touch HMI device with RS-485 x 2, USB, RTC, and less-surface-exposed housing design
by ICP DAS
|
|
|
|

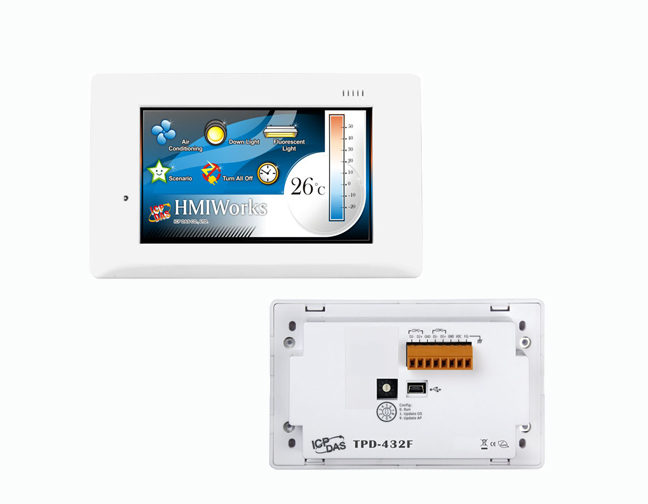

The TPD-432F TouchPAD is a tiny touch HMI and is designed for building and home automation. TPD-432F is equipped with high resolution TFT color touch screen and can be used to replace regular electrical wall-mount outlets. It is seamlessly integrated with rich I/O modules and presents a beautiful, flexible, and user-defined picture frame. In short, it is the best choice to upgrade a mechanical switch to intelligent control pads.
For PLC users, HMIWorks provides Ladder Designer, and for IT users, C language environment is provided. It takes no more than 30 minutes to learn how to create an application program of TPD-series devices when using Ladder Designer. It supports Modbus TCP/RTU protocols so that it enables remote control of I/O modules and integration with SCADA software. With all the features provided, TPD-series touch HMI Devices must be the most cost effective HMI Device in the market.
Can be used with external wall box EWB-T43F for easy mounting.
|
|
|
The TPD-432F TouchPAD is a tiny touch HMI and is designed for building and home automation. TPD-432F is equipped with high resolution TFT color touch screen and can be used to replace regular electrical wall-mount outlets. It is seamlessly integrated with rich I/O modules and presents a beautiful, flexible, and user-defined picture frame. In short, it is the best choice to upgrade a mechanical switch to intelligent control pads.
For PLC users, HMIWorks provides Ladder Designer, and for IT users, C language environment is provided. It takes no more than 30 minutes to learn how to create an application program of TPD-series devices when using Ladder Designer. It supports Modbus TCP/RTU protocols so that it enables remote control of I/O modules and integration with SCADA software. With all the features provided, TPD-series touch HMI Devices must be the most cost effective HMI Device in the market.
Can be used with external wall box EWB-T43F for easy mounting.
| CPU Module |
| CPU |
32-bit RISC CPU |
| Memory |
16 MB SDRAM / 8 MB Flash |
| Real Time Clock (RTC) |
Yes |
| Buzzer |
Yes |
| Rotary Switch (0~9) |
Yes |
| Communication Interface |
| Serial Port |
RS-485 (including Self-Tuner) x 2 |
| Ethernet |
- |
| USB 1.1 Client |
Firmware updates only |
| MMI (Main Machine Interface) |
| LCD |
4.3” TFT(Resolution 480 X 272 X 16), defective pixels <= 3 |
| Backlight Life |
20,000 hours |
| Brightness |
400 cd/m2 |
| Touch Panel |
Yes |
| LED Indicator |
Yes |
| Reset Button |
Yes |
| Electrical |
| Power Input Range |
+10 ~ 30 VDC |
| Power Consumption |
2.5 W (104 mA @ 24 VDC) |
| Mechanical |
| Dimensions (W x L x H) |
140 mm x 87 mm x 42mm |
| Installation |
Wall Mount |
| Ingress Protection |
Front Panel: IP40 |
| Environmental |
| Operating Temperature |
-20 ~ +50 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Ambient Relative Humidity |
10 ~ 90% RH, non-condensing |
|
|
|
|
