Moxa RKP-C220-C5-T - 2U Rackmount type, Core i5-13500TE, 8GB DDR4x1, COMx2, LANx4, USBx3, DIOx4, DP+HDMI, 100-240 VAC power inpu
by MOXA
|
|
|
|
- 13th Gen Intel® Core™ Raptor Lake-S processor and Intel® Q670E chipset
- 2U rackmount computers with fanless design
- Supports NVIDIA RTX Series FLFH GPU card up to 200 W TDP
- 2 SODIMM sockets support up to 64 GB
- 3 PCIe slots for expansion modules: x16 (with GPU support), x8 (4-lane), and x1 PCIe slots
- Rich set of interfaces: Up to 8 LAN ports, up to 10 serial ports, and 2 CAN ports
- 2 lockable 2.5" SATA SSD slots and 3 extendable M.2 M key SSD slots for supporting 2 sets of Intel® RST RAID 0/1
- -30 to 60°C operating temperature range
|
|
|

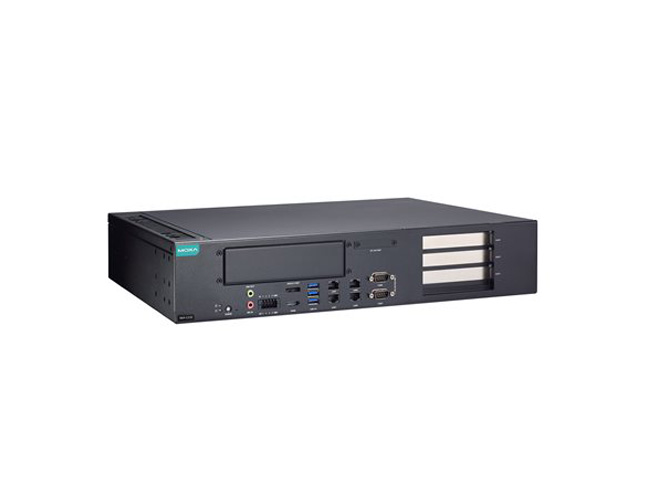

Moxa RKP-C220-C5-T
The RKP-C220 Series rugged fanless rackmount computers powered by a 13th Gen Intel® Core™ i3, i5, i7, or i9 processor with up to 24 cores and 32 threads, and a rich set of interface options can easily extend the potential of your industrial applications. The computer models come with a rich set of interfaces including up to 8 Gigabit Ethernet ports, 10 software-selectable RS-232/422/485 serial ports (Moxa in-house IC design), up to 2 CAN ports, and 4 DIs and 4 DOs. Expansion modules can be installed via 3 PCIe slots, including a x16 slot that supports full-length discrete GPU cards for AI-accelerated performance, a x8 (4-lane) slot, and a x1 slot. Two lockable 2.5” SSD storage slots and three M.2 M key SSD extension slots support two sets of Intel® RST RAID 0/1. All interfaces are located on one side of the product for convenient access and wire stripping while an external RTC battery slot simplifies battery replacement. A 2U standard form factor with a rackmount chassis, fanless design, a wide temperature range of -30 to 60°C, an additional fan module to increase performance, and a built-in TPM 2.0 module, make the computers reliable, durable, versatile yet user-friendly industrial platforms in harsh operating environments. The RKP-C220 Series is an intelligent computing platform that is a perfect fit for your industrial applications.
|
|
