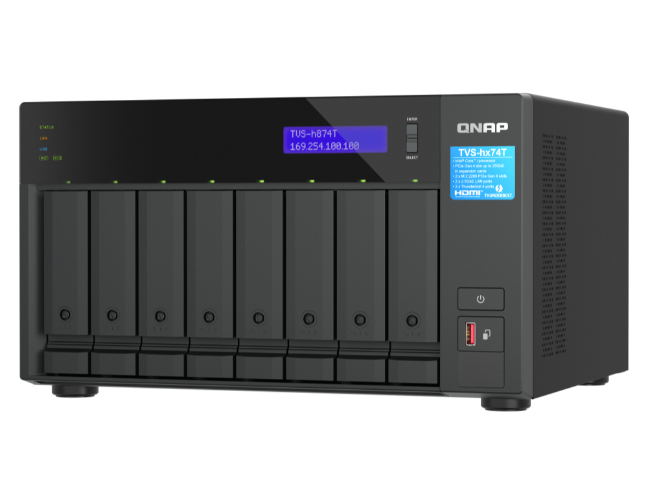

TVS-h874T-i7-32G-US - Ultra-High Speed 8 Bay Thunderbolt' 4 NAS.

QNAP TVS-h874T-i7-32G-US - Ultra-High Speed 8 Bay Thunderbolt' 4 NAS. Intel® Core' i7 12-core
by QNAP

TVS-h874T-i7-32G-US_SUMMARY.html

12th Intel® Core™ processor with built-in GPU
2x M.2 NVMe slots for SSD caching
2x Thunderbolt™ 4, 2x 2.5GbE, 2x PCIe slots

Description
Specification
Datasheet

TVS-h874T-i7-32G-US_DESCRIPTION.html

With an Intel® Core™ multicore-core Processor to support the ZFS-based QuTS hero operating system, the TVS-h874T-i7-32G-US SMB NAS ensures data integrity and supports block-level inline data deduplication and compression, near-limitless snapshots, real-time SnapSync, and SSD optimization. Whether for mission-critical file servers, virtualization servers, collaborative video editing, or efficient data backup and recovery applications, the TVS-h874 delivers an ideal NAS solution. The high-performance TVS-h874 provides PCIe Gen 4 (up to twice the transmission speed of Gen 3) expandability, M.2 NVMe SSD caching, and 2.5GbE/10GbE connectivity for high-speed virtualization network environments.

TVS-h874T-i7-32G-US.html


CPU	Intel® Core™ i7 12-core (8P+4E) /20-thread Processor
CPU Architecture	64-bit x86
Graphic Processors	Intel® UHD Graphics 770
Floating Point Unit
Encryption Engine	(AES-NI)
Hardware-accelerated Transcoding
System Memory	32 GB SODIMM DDR4 (2 x 16 GB)
Maximum Memory	64 GB ( 2 x 32 GB)
Memory Slot	2 x SODIMM DDR4
Flash Memory	5GB (Dual boot OS protection)
Drive Bay	8 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility	3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives
Hot-swappable
M.2 Slot	2 x M.2 2280 PCIe Gen 4 x4 slots Compatible with NVMe SSD PCIe Gen 3 and above. Please refer to https://www.qnap.com/compatibility/ for compatibility.
SSD Cache Acceleration Support
GPU pass-through
2.5 Gigabit Ethernet Port (2.5G/1G/100M)	2 (2.5G/1G/100M/10M)
Wake on LAN (WOL)
Jumbo Frame
Thunderbolt Port	2 (Thunderbolt™ 4) Supports only Thunderbolt connections for Windows & Mac hosts and USB storage devices. Third-party Thunderbolt external storage devices are not supported.
PCIe Slot	2 Slot 1: PCIe Gen 4 x16 Slot 2: PCIe Gen 4 x4 *Slot 2 is preinstalled with a Thunderbolt 4 AIC. Card dimensions for PCIe slot 1~Slot 2：185 x 131.15 x 18.76 mm / 7.28 x 5.16 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used.
USB 3.2 Gen 2 (10Gbps) Port	1 x Type-C USB 3.2 Gen 2 10Gbps 2 x Type-A USB 3.2 Gen 2 10Gbps
HDMI™ Output	1, HDMI™ 1.4b (up to 4096 x 2160 @ 30Hz)
Form Factor	Tower
LED Indicators	HDD 1-8, Status, LAN, USB port, M.2 port
LCD Display/ Button
Buttons	Power, Reset, USB Copy
Dimensions (HxWxD)	7.09 x 12.96 x 11.01 inch Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)
Weight (Net)	16.18 lbs
Weight (Gross)	19.82 lbs
Operating Temperature	0 - 40 °C (32°F - 104°F)
Storage Temperature	-20 - 70°C (-4°F - 158°F)
Relative Humidity	5-95% RH non-condensing, wet bulb: 27°C (80.6°F)
Power Supply Unit	350W (PWR-PSU-350W-DT01), 100-240V
Power Consumption: HDD Sleep Mode	62.668 W
Power Consumption: Operating Mode, Typical	104.35 W Tested fully populated with WD10EFRX hard drives.
Fan	System fan: 2 x 120mm, 12VDC CPU fan: 1 x 60mm, 12VDC
System Warning	Buzzer
Kensington Security Slot
Max. Number of Concurrent Connections (CIFS) - with Max. Memory	3500
