ICP DAS GW-2235i - Modbus TCP to RTU / ASCII Gateway with PoE and 3 Isolated RS-485
by ICP DAS
|
|
|
|
- Supports Modbus TCP/UDP master and slave
- Supports Modbus RTU/ASCII master and slave
- Max. TCP masters per serial port: 32 (RevB)
- Read-cache ensures faster Modbus TCP/UDP response
- Supports UDP responder for device discovery (UDP Search)
- Static IP or DHCP network confi guration
- Easy fi rmware update via the Ethernet (BOOTP, TFTP)
- Tiny Web server for serial and network confi guration (HTTP)
- Redundant power inputs: PoE and DC jack
- tGW-700: 10/100 Base-TX Ethernet, RJ-45 × 1
- GW-2200i: 2-port Ethernet Switch (LAN Bypass for Daisy- Chain Wiring
- Allows automatic RS-485 direction control
- 2500 VDC isolation and +/-4 kV ESD protection for i versions
- Male DB-9 or terminal block connector for easy wiring
- Tiny form-factor and low power consumption
- RoHS compliant & no Halogen
|
|
|

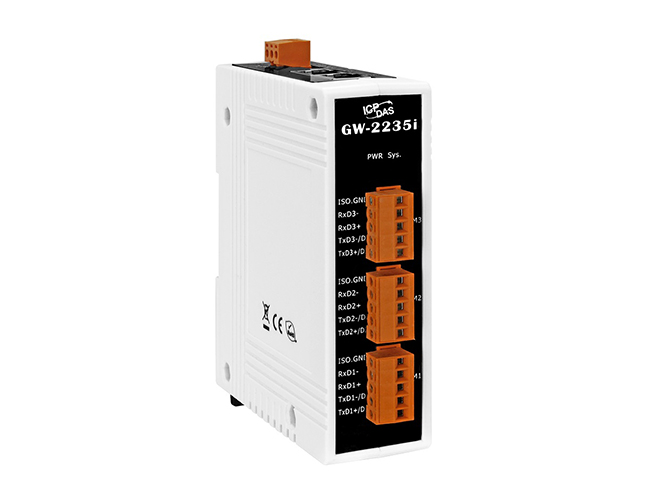

ICP DAS GW-2235i
GW-2200i module features a powerful 32-bit MCU to enable efficient handling of network traffic, and also has a built-in web server that provides an intuitive web management interface that allows users to modify the configuration of the module, including the DHCP/Static IP, the gateway/mask settings and the serial port settings.
Applications
- Factory Automation
- Home Automation
- Building Automation
- Remote Diagnosis and Management
Specifications
- CPU: 32-bit MCU
- Communication Interface
- Ethernet: 700 Series: 10/100 Base-TX, 8-pin RJ-45 x 1, (Auto-negotiating, Auto-MDI/MDIX, LED indicator)
2200i Series: 2-Port 10/100 Base-TX Ethernet Switch with LAN Bypass, RJ-45 x 2 (Auto-negotiating, Auto-MDI/MDIX, LED indicator)
- PoE: IEEE 802.3af, class 1
- COM port: 700 Series: 2 x RS-485
2200i Series: 2 x RS-422/RS-485
- Self-Tuner: yes, automatic RS-485 direction control
- Isolation: 3000 VDC (Signal isolation for i version)
- ESD protection: +/-4 kV
- COM Port capability ( 16C550 or compatible UART )
- Baud Rate: 115200 bps Max.
- Data bit: 5, 6, 7, 8
- Parity: none, odd, even, mark, space
- Stop Bit: 1, 2
- Power
- Power Input: IEEE 802.3af, Class 1 for PoE; +12 ~ 48 VDC for DC Jack
- Power consumption: 0.07A @ 24 VDC
- Mechanical
- Connector: 700 Series: 10-pin Removable Terminal Block x 1
2200i Series: 5-pin Removable Terminal Block x 1 for 2212i/2215i; x 2 for 2222i/2225i; x 3 for 2232i/2235i
- Dimensions (mm): 700 Series: 52 mm x 95 mm x 27 mm (tDS/tGW-712: 52 mm x 90 mm x 27 mm) (tDSM-712: 75 mm x 83 mm x 24 mm)
2200i Series: 90mm x 110mm x 33mm (without connectors)
- Installation: DIN-Rail mounting
- Case: Plastic
- Environmental
- Operating temperature: -25~75ºC
- Storage temperature: -30~80ºC
- Humidity: 10~90% RH, non-condensing
|
|
