ICP DAS GW-7552-B - ProfiBus / Modbus Gateway by ICP DAS

ICP DAS GW-7552-B - ProfiBus / Modbus Gateway
by ICP DAS

Write a review Write a review
  • Protocol & Hierarchy: DP-V0 Slave
  • Detect transmission rate (9.6 ~ 12000 kbps) automatically
  • 128 bytes max input data length
  • 131 bytes max output data length
  • Support Modbus Master and Slave mode
  • Support Modbus RTU and ASCII format
  • Address 0~126 set by DIP switch or EEPROM
  • Support several kinds of baud rate for COM1 from 2.4 to 115.2 kbps
  • Network Isolation Protection: High Speed iCoupler
  • 3000 VDC isolation protection on PROFIBUS side
  • 4 kV ESD Protection
Mfg SKU # : GW-7552-B
Our Price : $819.00
Stock : Call for Availability
Quantity :

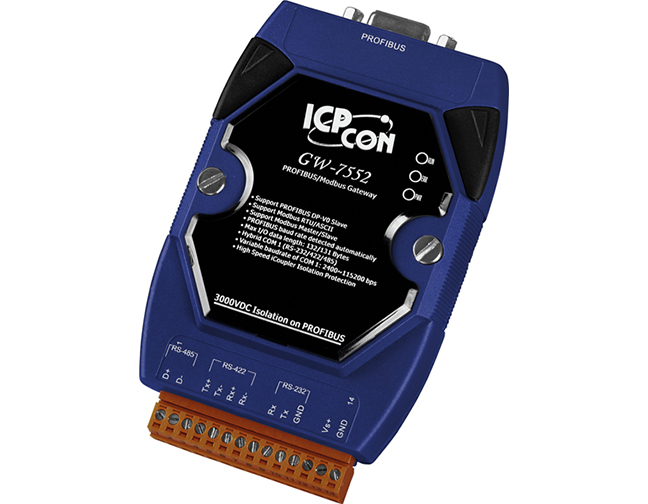

ICP DAS GW-7552-B

The GW-7552 Gateway is specially designed for the slave device of PROFIBUS DP protocol. It allows the PROFIBUS master to access the Modbus devices. These Modbus devices may be a PLC, a sensor, ICPDAS M-7000 series modules and so forth. In addition, we also provide the utility software for users to configure the GW-7552. By using this module, users can put their Modbus devices into PROFIBUS network very easily.

Specifications

  • CPU: 80186, 80MHz
  • Flash: 512 Bytes
  • SRAM: 512 Bytes
  • EEPROM: 16K Bytes
  • Watch Dog Timer: CPU Built-In
  • COM 1: RS-232(3 wires)/RS-422/RS-485
  • Baudrate: Up to 115.2Kbps
  • PROFIBUS interface: 9-pin D-Sub(Female)
  • PROFIBUS Controllers: Siemens SPC3
  • PROFIBUS Transceiver: ADI ADM2486 iCoupler Isolated Transceiver
  • Transmission Rate: up to 12 Mbps
  • Power Requirement: 10~30V
  • Power consumption 2.5W
  • Operating temp: -25~75ºC
  • Storage temp: -30~85ºC
  • Humidity: 5~95%
  • Dimensions: 118 x 72 x 33 mm
