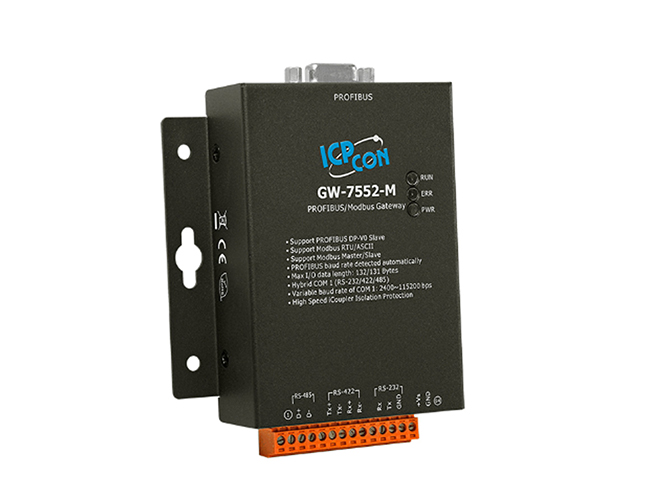

ICP DAS GW-7552-M

ICP DAS GW-7552-M - ProfiBus / Modbus Gateway (Metal Case)
by ICP DAS

Protocol & Hierarchy: DP-V0 Slave
Detect transmission rate (9.6 ~ 12000 kbps) automatically
128 bytes max input data length
131 bytes max output data length
Support Modbus Master and Slave mode
Support Modbus RTU and ASCII format
Address 0~126 set by DIP switch or EEPROM
Support several kinds of baud rate for COM1 from 2.4 to 115.2 kbps
Network Isolation Protection: High Speed iCoupler
3000 VDC isolation protection on PROFIBUS side
4 kV ESD Protection

Description
Specification
Datasheet

ICP DAS GW-7552-M

The GW-7552 Gateway is specially designed for the slave device of PROFIBUS DP protocol. It allows the PROFIBUS master to access the Modbus devices. These Modbus devices may be a PLC, a sensor, ICPDAS M-7000 series modules and so forth. In addition, we also provide the utility software for users to configure the GW-7552. By using this module, users can put their Modbus devices into PROFIBUS network very easily
