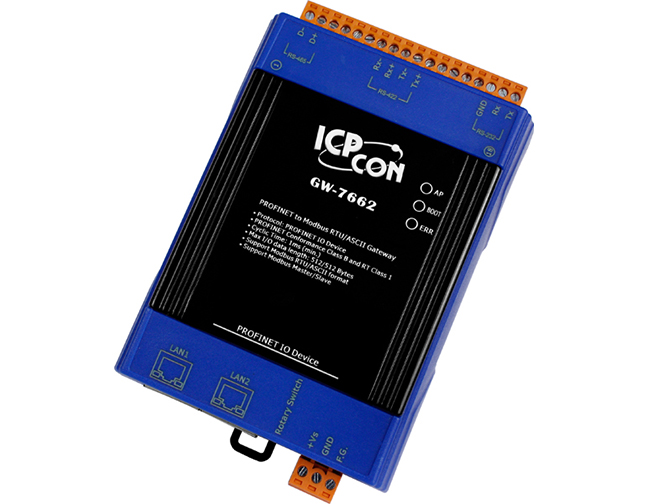

ICP DAS GW-7662
The GW-7662 specially designed for PROFINET IO device. It allows PROFINET controller to access Modbus devices. These Modbus devices maybe a PLC, a sensor, ICPDAS M-7000 series modules and so forth. We also provide a utility software for users to configure GW-7662. By using this module, users can put their Modbus devices into PROFINET network easily
Specifications
- Hardware
- CPU: 32-bit CPU core
- RAM/Flash/EEPROM: 32 MB/ 4 MB/ 8 KB
- Watchdog: CPU built-in
- ESD protection: 4kV class A
- PROFINET Interface
- Protocol: PROFINET IO Device
- Conformance classes: class B
- Services: RTC, RTA, CL-RPC, DCP, LLDP, I&M
- Cycle Time: 1 ms (min)
- Ethernet Interface
- Controller: 10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX)
- Connector: RJ-45 x 2 (LED indicators) , Integrated 2-Port Switch
- Services: ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging
- UART interface
- COM: RS-232/RS-422/RS-485 (can't be used simultaneously)
- COM connector:
- 3-pin screwed terminal block (RxD, TxD, GND)
- 4-pin screwed terminal block (RxD+, RxD-, TxD+, TxD-)
- 2-pin screwed terminal block (DATA+, DATA-)
- Baud Rate (bps): 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800
- Data bit: 7, 8
- Stop bit: 1, 2
- Parity: none, even, odd
- LED
- Transmission rate: AP LED, BOOT LED, ERR LED
- Power
- power supply: unregulated 10~30 VDC
- protection: Power reverse polarity protection, Over-voltage brown-out protection
- power consumption: 3.4W
- Mechanism
- Installation: DIN-Rail
- Dimensions: 42 mm x 76 mm x 119 mm (W x L x H)
- Environment
- Operating temp: -25~75ºC
- Storage temp: -30~80ºC
- Humidity: 10~90% RH, non-condensing
|
