ICP DAS PET-2215H - 8 channel Speed RTD Inputs
by ICP DAS

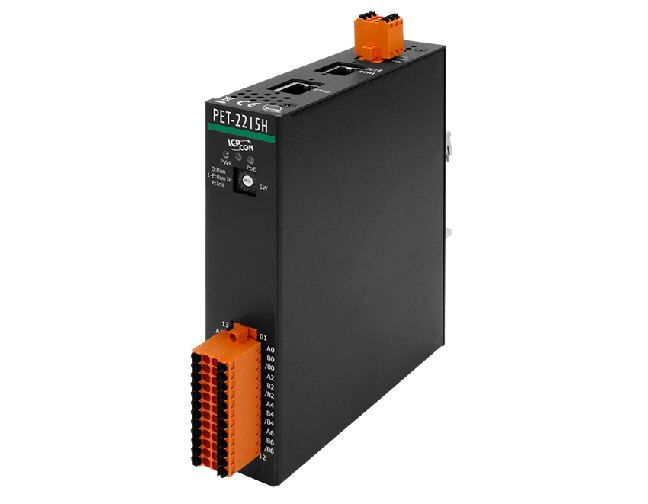

ICP DAS PET-2215H

The ET-2217/PET-2217 is a module with 8-channel diff erential or 16 single-ended analog input module. The module provides a programmable input range on all Analog Input channels (±150 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, ±10 V, 0 to 20mA, 4 to 20mA, and ±20 mA). Each analog input channel can be confi gured for an individual input range, providing a high overvoltage protection of 120 VDC and 50mA overcurrent protection at 110 VDC/VAC. Voltage and current input is DIP switch selectable. The sampling rate of the ET-2217/PET-2217 is adjustable and can be set to either fast (200Hz) or normal (20Hz) mode. It can be used to record voltage and current information. The module also features per-channel open wire detection for 4 ~ 20 mA input and provides 4 kV ESD/EFT protection, 2 kV Surge protection, and 3000 VDC intramodule isolation

Applications
• Factory Automation
• Machine Automation
• Building Automation
• Remote Diagnosis & Maintenance
• Testing Equipment

Specifications

• Built-in web server: yes
• CPU: 32-bit ARM
• watch dog timer: module, communication (programmable)
• 2-way isolation:
  • Ethernet: 1500 VDC
  • I/O: 3000 VDC
• EMS protection
  • EFT (IEC 61000-4-4): +-4 kV for Power Line
  • ESD (IEC 61000-4-2):
    • +-4 kV Contact for Each Terminal
    • +-8 kV Air for Random Point
  • Surge (IEC 61000-4-5): +-2 kV for Power Line
• LED indicators: Run, Ethernet, PoE
• Analog Input:
  • channels: 8
  • Sensor type: Pt100, Ni120, Cu50, Cu100
  • Resolution: 16-bit
  • Accuracy:
    • Normal Mode: +-0.05 % of FSR (25 deg Cel)
      Fast Mode: +-0.1 % of FSR (25 deg Cel)
  • Sampling Rate:
    • Normal Mode: 1.5 Hz (per channel)
      Fast Mode: 90 Hz (per channel)
  • Input impedance: > 1 MΩ
  • Individual channel configuration: yes
  • open wire detection: yes
  • 3-wire RTD lead resistance elimination: yes
• Ethernet
  • ports: 2 x RJ-45, 10/100 Base-Tx, Switch Ports
  • LAN bypass: yes
  • Access control: password and IP filter
  • Protocol: Modbus TCP, Modbus UDP, MQTT, SNMP V2c
• Power
  • Reverse polarity protection: yes
  • consumption: 1.8W (max.)
  • Powered from PoE: IEEE 802.3af, class 1
  • Powered from terminal block: 10~48 VDC
• Mechanical
  • casing: metal
  • Dimensions (mm): 31 x 159 x 137 (W x L x H)
  • Installation: DIN-Rail mounting/ wall mounting
• Environment
  • Operating temperature: -25~75ºC
  • Storage temperature: -40~80ºC
  • Humidity: 10~90% RH, non-condensing
