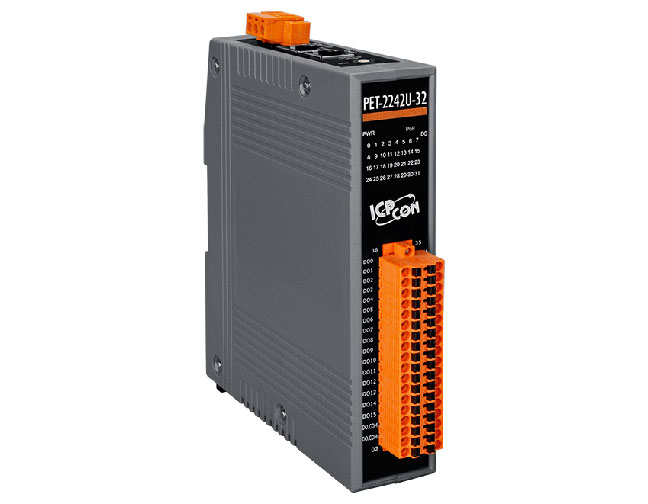

ICP DAS PET-2242U-32
PET-2242U-32 is a 32-channel digital output (Sink/Source-type) module. Each channel provides photocoupler isolation and short circuit protection, capable of driving a 300 mA load. The module includes a built-in 2-port Ethernet switch, facilitating a daisy-chain topology. This feature offers flexibility in device configuration, simplifies installation, and reduces infrastructure costs. Additionally, the module provides EMS (EFT/ESD/Surge) protection and 3000 VDC I/O isolation to enhance noise protection capabilities in industrial environments. It also offers configurable DO power-on value and safe value settings.
Moreover, the module supports I/O Pair-Connection functionality, allowing the establishment of DI-to-DO pairing connections with the remote module via Ethernet. Once configured, remote DI data can be written to local DO channels in Pull mode via Modbus TCP. PET-2242U-32 supports the MQTT protocol, serving as a publisher and subscriber of messages. When connected to an MQTT Broker Server, it can publish real-time statuses of I/O in the form of topics and receive messages from subscribed topics. If a disconnection occurs between the module and the broker during communication, its mechanism for reconnecting can automatically restore the connection. Additionally, its Keep-Alive Interval mechanism ensures a continuous connection with the broker.
PET-2242U-32 supports the SNMP V2c specification, enabling it to transmit both module and I/O information to SNMP network management devices or software (SNMP Network Management Software). This allows administrators to monitor module status in real-time. Additionally, if the Trap function is enabled, the module can proactively send messages to administrators when there are changes in I/O statuses or during restarts, keeping them informed of channel statuses at all times.
PoE I/O Module with 32 x Digital Outputs (Sink/Source). Communicable over Modbus TCP/UDP, MQTT and SNMP V2c Protocols. Has 2 Ethernet ports (LAN Bypass) for Daisy Chain Wiring. Dimensions are 31 x 157 x 129 mm (W x L x H) and supports operating temperature -25C to 75C.
