ICP DAS PET-7028 - PoE 8 Analog Output
by ICP DAS
|
|
|
|
- Built-in web server
- Web HMI
- Support for both Modbus TCP and Modbus UDP protocols
- Communication Access Control
- 2-port Ethernet switch (LAN bypass) for Daisy-Chain wiring
- Dual watchdog
- I/O pair connection
- Built-in I/O
|
|
|

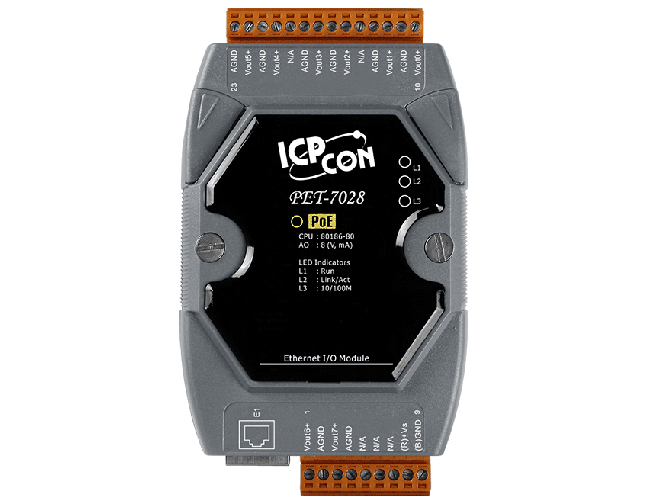

ICP DAS PET-7028
The PET-7028 is a 8 channels analog output. It provides a variety of programmable analog output options (+/-5 V, +/-10 V, 0 ~ 20 mA, and 4 ~ 20 mA), and each analog output can be programmed to accept either current or voltage as output depending upon the position of the corresponding jumper. The ET-7028/PET-7028 is fully RoHS compliant and provides 4 kV ESD protection as well as 2500 VDC intra-module isolation.
Specifications
- Built-in web server: yes
- CPU Module
- watchdog timer: module, communication (programmable)
- 2-Way Isolation: I/O: 2500 VDC
- EMS protection
- EFT (IEC 61000-4-4): ±4 kV for Power Line
- ESD (IEC 61000-4-2):
- ±4 kV Contact for Each Terminal
- ±8 kV Air for Random Point
- LED indicators
- status: Run, Ethernet, PoE
- Analog Input
- Channels: 8
- Type: voltage current
- +0 ~ +5 VDC, ±5 VDC, +0 ~ +10 VDC, ±10 VDC
- Range: 0 ~ 20 mA, 4 ~ 20 mA (Jump selectable)
- Resolution: 12-bit
- Accuracy: ±0.1% of FSR
- Open wire detection: for 4~20 mA only
- Voltage output capability: 10V @ 10 mA
- Current load resistance: 500 Ω
- Individual channel configuration: yes
- Power-on value: programmable
- safe value: programmable
- Ethernet
- Ports: 1 x RJ-45, 10/100 Base-TX
- PoE: yes
- Access Control: ID, password and IP filter
- Protocol: Modbus TCP, Modbus UDP
- Power
- Reverse polarity protection: yes
- Consumption: 6.0W (max.)
- Powered from PoE: IEEE 802.3af, class 1
- Powered from terminal block: 12~48 VDC
- Mechanical
- Dimensions (mm): 72 x 123 x 35 (W x L x H)
- Installation: DIN-rail or wall mounting
- Environment
- Operating temperature: -25~75ºC
- Storage temperature: -30~80ºC
- Humidity: 10~90% RH, no condensation
|
|
|
|
