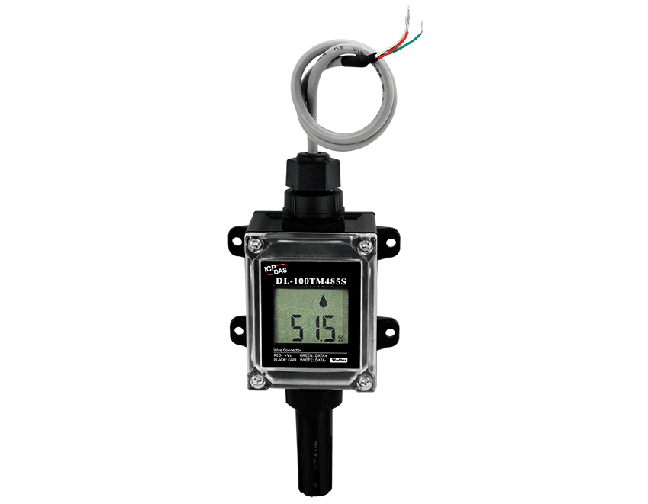

ICP DAS DL-100TM485S - Temperature and Humidity Data Logger with Modbus RTU protocl (Black Cover)
by ICP DAS

ICP DAS DL-100TM485S

DL-100TM485S/DL-100TM485PS/DL-100TM485S-W/ DL-100TM485PS-W is a temperature and humidity data logger module. It contains an RS-485 communication interface and an LCD display to show a variety of data such as: temperature, humidity, dew point and module ID. The data storage memory can store up to 4088 temperature and humidity records. The DL Utility is included to allow installation, confi guration, retrieval and display of data in a powerful chart format that can be exported to Excel.

Applications

• Pharmaceuticals Transportation
• Blood Stations, Pharmacies
• Food and Beverage Industry (HACCP Systems)
• Building Automation
• Energy Management
• Warehouses
• Museums, archives, galleries

Specifications

• Temperature Measurement
  • Measuring range: -20~60ºC
  • Resolution: 0.1ºC
  • Accuracy: ± 0.4ºC
  • Precision: ±0.1 ºC
• Humidity Sensor
  • Measuring range: 0~100% RH
  • Resolution: 0.1% RH
  • Accuracy: Typical ±3% RH @ 20 to 80% RH
  • Precision: ±0.1 RH
• Dew Point
  • Range: calculated using temperature and relative humidity
  • Resolution: 0.1ºC
• LCD display: temperature, humidity, module ID
• Data Logger
  • Time interval: 10 seconds to 1 day
  • Max. Records: 4088 temperature and humidity records
  • Mode: overwrite or stop logging when storage space is full
  • Overwrite limitation: 1,000,000 cycles
• COM ports
  • ports ports: 1 x RS-485, non-isolated
  • Baud rate: 1200~115200 bps
  • Data format: N, 8, 1
  • Protocol: Modbus RTU
• Power
  • Input range: +10~30 VDC
  • Power consumption: 0.15W
• Mechanical
  • Dimensions (WxLxH): 82x172x55 mm
  • Cable length: 380 mm
  • waterproof level: IP66
  • Installation: DIN-Rail; wall mount
• Environment
  • Operating temperature: -20~60ºC
  • Storage temperature: -30~80ºC
  • Ambient relative humidity: 5~95% RH, non-condensing
