| Interfaces |
| RJ45 |

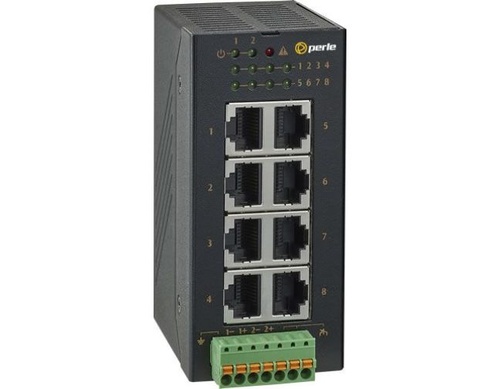

8 x RJ45 ports for 10/100/1000Base-T up to 100 meters (328 ft)
Auto-negotiation
Auto-MDI/MDIX-crossover for use with either crossover over straight-through cable types
Ethernet isolation 1500 V
|
| Alarm Contact |
One relay output with current 0.5A@30V |
| Power |
| Dual Power Input |
12/24/48VDC (9-55VDC) |
| Power Consumption |
5.55W max |
| Maximum Current Consumption @ 24VDC |
0.16A @ 24VDC |
| Power Connector |
7-Pin Removable Terminal Block |
| Overload Current Protection |
2A fuse provides overload current protection |
| Reverse Polarity Protection |
The positive and negative inputs can be reversed providing safe and simple power connectivity. |
| Switch Properties |
| Standards |
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/FX
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.1p Quality of Service (QoS)
|
| Processing Type |
Store-and-Forward
Auto Negotiation
Half-duplex back-pressure and IEEE
802.3x full-duplex flow control
Auto MDI/MDIX
|
| MAC Address Table Size |
4K |
| Packet Buffer Memory |
1.5 Mbit |
| Jumbo Frame Size |
9216 bytes |
| Forward/Filtering Rate |
14,880pps for 10Mbps
148,810pps for 100Mbps
1,488,100pps for 1000Mbps
|
| Indicators |
| Power LED 1 |
This LED is green when power is applied |
| Power LED 2 |
This LED is green when power is applied |
| Fault LED |
This LED is red when a fault is detected |
| RJ45 / SFP Ethernet LED |
These LED is solid green for established link and bllinks green when activity is detected (per port) |
| Environmental Specifications |
| Operating Temperature Ranges |
IDS-108GE: -10 to 60C (14 to 140F)
IDS-108GE-XT: -40 to 75C (-40 to 167F)
|
| Storage Temperature Range |
-40 to 85C (-40 to 185F) |
| Operating Humidity Range |
5% to 90% non-condensing |
| Storage Humidity Range |
5% to 95% non-condensing |
| Operating Altitude |
Up to 3,048 meters (10,000 feet) |
| Din Rail Mountable |
DIN Rail attachment included. Mounts to standard 35 mm DIN rail in accordance with DIN EN 60175. |
| Maximum Heat Output |
18.926 BTU/Hr |
| MTBF |
3093836 hours
MTBF Calculation model based on MIL-HDBK-217-FN2 @ 25C
|
| Product Weight and Dimensions |
| Weight |
0.336 Kg, 0.74 lbs |
| Dimensions |
45x75x100mm (W x D x H)
(1.77"x2.95"x3.94")
|
| Packaging |
| Shipping Weight |
336g (0.74lbs) |
| Shipping Dimensions |
45x75x100mm, 1.77"x2.95"x3.94" (W x D x H) |
| Contents Shipped |
Industrial Ethernet Switch with DIN Rail attachment
Terminal block
Installation guide
|
| Standards and Certifications |
| Safety |
UL 61010 |
| EMC Emissions |
FCC Part 15 Class A
VCCI Class A
EN 61000-6-4
ICES-003
EN 55032
|
| EMC Immunity |
EN 61000-6-2
EN 61000-4-2 (ESD)
EEN 61000-4-3 (Radiated RFI)
EN 61000-4-4 (Burst)
EN 61000-4-5 (Surge)
EN 61000-4-6 (Induced RFI)
EN 61000-4-8 (Magnetic field)
|
| Industrial |
EN 50121-4 |
| Environmental Test Compliance |
IEC 60068-2-6 Fc (Vibration)
IEC 60068-2-27 Ea (Shock)
|
| Environmental |
Reach, RoHS and WEEE Compliant |
| Other |
ECCN: 5A991
HTSUS Number: 8517.62.0020
|
