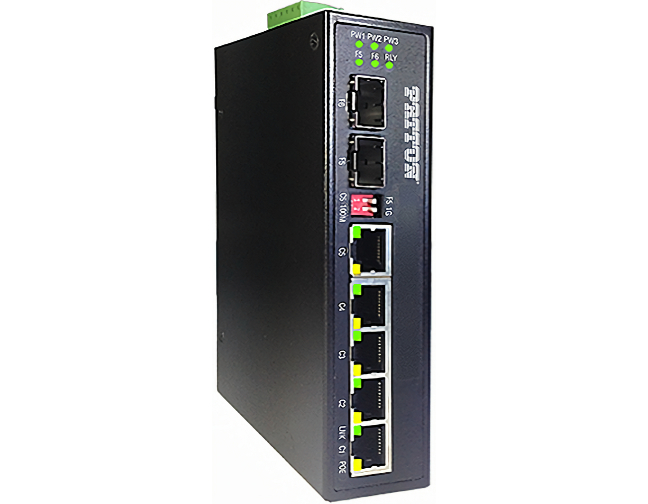

Patton FP1005E/2SFP/DC – Unmanaged Industrial Gigabit Ethernet Switch; 4 x 10/100/1000 (RJ45); 1 x GigE SFP, 1 x SFP/TX Combo
by PATTON

Patton's™ FP1005E-2SFP-DC - Unmanaged Industrial Gigabit Ethernet Switch supports industrial applications requiring high bandwidth or high density connections, such as power/utilities, water/wastewater treatment, oil/gas/mining, process control automation, security access control systems, and intelligent transportation systems.

The FP1005E is housed in an sturdy IP30 rated DIN-rail enclosure with wall mount options.The physical layer interfaces include 5 RJ45 10/100/1000 Ethernet ports, 1 100/1000 SFP slot and 1 SFP/Tx combo slot that can be used for fiber trunk connections. To ensure operation in harsh environments, the FP1005E provides additional EFT and ESD protection that prevents unregulated voltage or harmful transients, and has an operating temperature rating of -40 to 75C (-40 to 167F).

Ethernet Port	5 RJ45 ports with 10/100/1000Tx auto MDI/MDI-x connection
Fiber Port	Wavelength: Refer to SFP+ modules at patton.com/SFP-OC 1 100/1000 SFP cage and 1 SFP/Tx combo cage
Standards	IEEE 802.3x, 3u, 3ab, 3az
Switching Architecture	Backplane (Switching Fabric): 12 Gbps
Transfer Rate	Up to 1.0 Gbps for Gigabit Ethernet port
Jumbo Frame	9 Kbytes
MAC Table Size	1K
Packet Buffer Size	1M
Protocol	CSMA/CD
Free fall / Shock / Vibration	IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6
Overload Current Protection	Present
Operating Temperature	-40 to 75°C (-40 to 167°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Operating Humidity	5 to 95% (non-condensing)
Input Voltage	12-56 VDC, Redundant Input (with 1 removable 6-contact terminal block) 100-240 VAC adapter (optional)
Power Consumption	5.76 watts at 48 VDC full load
Reverse Polarity Protection	Yes
Housing	Metal, IP30 protection, DIN-Rail Mounting (wall mounting bracket is also included)
Dimensions	1.69W x 4.13D x 5.59H in. (43W x 105D x 142H mm)
Weight	Unit Weight: 2.5 lbs. Shipping Weight: 3.0 lb
Certifications	FCC, CE, EN 55032/24
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 6KV; Air: 8K VIEC 61000-4-4 EFT: Power: 2KV; Signal: 2KV IEC 61000-4-5 Surge: Power: 2KV; Signal: 2KV
