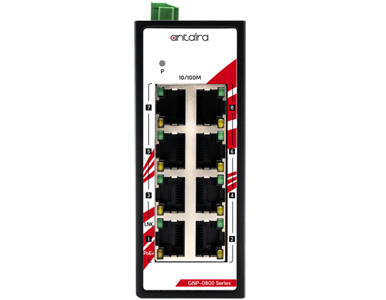

Antaira GNP-0800 - 8-Port Industrial PoE+ Unmanaged Ethernet Switch, w/8*10/100Tx (30W/Port)
by ANTAIRA
|
|
|
|
- 8*10/100 with IEEE 802.3af/at PoE+ (30W/Port)
- Support 200W Total PoE Power with 56VDC Power Input
- DIN-Rail or Wall Mountable
- Standard Operating Temperature: -10°C to 70°C
- TAA / NDAA Compliant
|
|
|

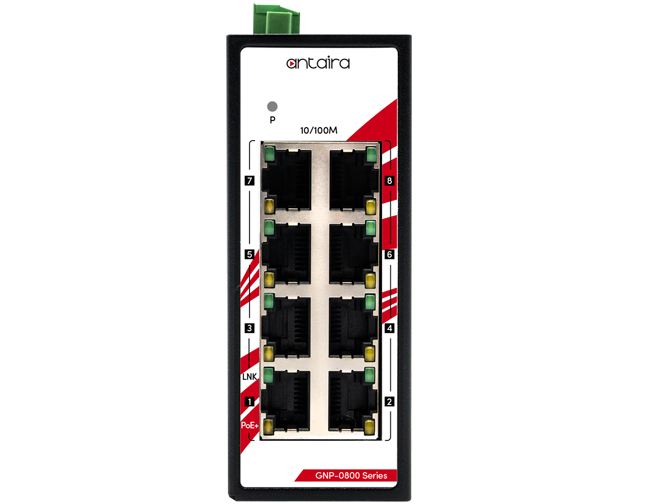

Antaira GNP-0800
Antaira Technologies’ GNP-0800 Series is an ultra-compact, rugged industrial 8-port 100Mbps Ethernet switch featuring 30W PoE PSE ports. Designed for demanding environments, including hazardous industrial sites and centralized control stations, the GNP-0800 Series delivers reliable performance in a slim, space-saving form factor. Its compact design makes it well suited for industrial automation, IP surveillance, traffic monitoring, security, transportation, telecom, and other space-constrained applications requiring dependable network connectivity.
Specifications
- Total ports: 8
- RJ45 100M: 8
- 30W PoE+: 8
- PoE budget: 200W with 56 VDC input
- Power consumption: 2.24W @48 VDC full load without PoE
- Power input: 48~56 VDC
- Operating temperature: -10~70ºC
- Housing: Metal, IP30
- Mounting: Wall mount, DIN-Rail
- PoE LED indicator: yes
|
|
|
|
