ICP DAS NSM-206PSE - 6-port 10/100 Mbps PoE(PSE) Ethernet Switch
by ICP DAS
|
|
|
|
NSM-206PSE_SUMMARY.html
- 4 PoE/PoE+ PSE capable ports, fully compliant to IEEE 802.3af/at
- Up to 30 watts per PoE port at 24~57 VDC Power Input
- Supports operating temperatures from -40C ~ +75C
- Full duplex IEEE 802.3x and half duplex backpressure flow control
- Power input 12~57 VDC wide range redundant power inputs
- Broadcast Storm protection
- Automatic MDI/MDI-X crossover for plug-and-play
- DIN-Rail Mounting, Wall Mounting (optional)
|
|
|
NSM-206PSE_DESCRIPTION.html

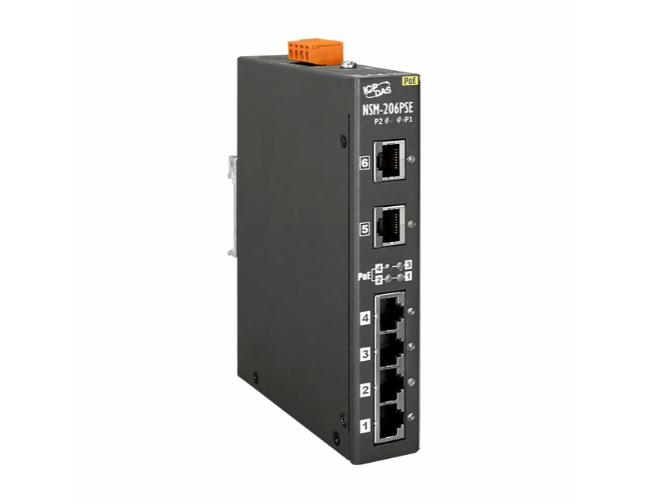

The NSM-206PSE is 6-port unmanaged Ethernet switch supporting Power-over-Ethernet on ports 1 to 4. The switch is classified as power source equipment (PSE), and when used in this way, the NSM-206PSE enable centralization of the power supply, providing up to 30 watts. The NSM-206PSE can be used to power IEEE 802.3af/at standard devices (PD).
NSM-206PSE.html
| LED Indicators |
| Status |
PWR1, PWR2, POE, Link/Act, Speed |
| Ethernet |
| Ports |
6 x RJ-45, 10/100Base-TX |
| Standards |
IEEE 802.3 for 10 Base-T
IEEE 802.3u for 100 Base-TX
IEEE 802.3x for Flow
Control, Back Pressure Flow Control
IEEE 802.3af Power Over Ethernet
IEEE 802.3at Power Over
Ethernet
Energy Efficient Ethernet (EEE) as per 802.3az; this provides power savings during idle
network activity |
| Processing Type |
Store & forward; wire speed switching |
| MAC Addresses |
2048 |
| Frame Buffer Memory |
768 Kbit |
| Isolation |
1500 Vrms 1 minute |
| DIP Switch |
Broadcast Storm protection |
| PoE Technology |
| PoE Compliance |
100% IEEE 802.3at complian |
| PoE Power |
Up to 30 watts per channel |
| PoE Operation |
Automatic detection and power management |
| PoE Pin Assignments |
V+ (pin 1, 2), V-(pin 3, 6) |
| PoE Disconnect Mode |
DC disconnect |
| PoE Voltage |
+52 VDC |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
12 ~ 57 VDC Redundant dual Input |
| Redundant Power Inputs |
Yes |
| Consumption |
0.125 A @ 12 VDC without PD loading, 6.2A @ 24VDC with PD full loading (15.4W per
ports)
0.15 A @ 24 VDC without PD loading, 5.8A @ 24VDC with PD full loading (30W per
ports)
0.10 A @ 48 VDCwithout PD loading, 2.9A @ 48VDC with PD full loading (30W per ports) |
| Mechanical |
| Casing |
Metal |
| Dimensions (mm) |
28 x 160 x 120 (W x L x H) |
| Installation |
DIN-Rail or Wall Mounting (with optional kit) |
| Environmental |
| Operating Temperature |
-40 ~ +75C |
| Storage Temperature |
-40 ~ +85C |
| Humidity |
10 ~ 90% RH, Non-condensing |
|
|
|
|
