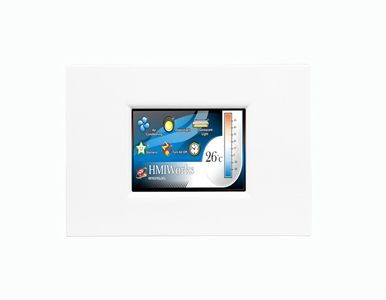

ICP DAS TPD-283U-M1 - 2.8" High Resolution TFT Color Touch, support PoE and RS 485 (Modbus RTU / TCP) (White Panel)
by ICP DAS
|
|
|
|
- Excellent C/P ratio (cost/performance)
- High-resolution color touch screen
- PoE (Power over Ethernet) for TPD-283-Mx and TPD-283U-Mx
- RS-485 (including Self-Tuner)
- RTC (Real Time Clock)
- GUI design
- Free HMIWorks development tool
- Supports C programming language and Ladder Designer
- Supports the custom communication protocol (C language)
- Modbus TCP/RTU protocol
- ESD Protection: 4 kV
- Operating temperature: -20°C ~ 70°C (-4°C ~ +158°F)
|
|
|
TPD-283U-M1 2.8" inch is a tiny touch HMI device designed for building and home automation. It is equipped with high resolution TFT color touch screen and fits in with regular electrical wall-mount outlet. It integrates seamlessly with I/O modules and presents beautiful, flexible, and user-defined picture frame. It is the best choice for upgrading the mechanical switch to intelligent control pads.
HMIWorks provides Ladder Designer, and for IT users, C language environment is provided. It only takes less than 30 minutes to create an application program of TPD-series devices when using Ladder Designer. We provide redundant solutions in our PoE version, including the TPD-283/283U-Mx of the TPD-series HMI devices. With all the features provided, TPD-series touch HMI devices are the most cost effective HMI Device in the market.
| Hardware |
| CPU |
32-bit RISC CPU |
| Memory Expansion |
16 MB SDRAM/16 MB Flash |
| Real Time Clock (RTC) |
Yes |
| Buzzer |
Yes |
| Rotary Switch (0~9) |
Yes |
| Communication Interface |
| Serial Port |
COM1 |
RS-485 (including Self-Tuner) |
| COM2 |
- |
| Ethernet |
RJ-45 x 1, 10/100 Base-TX |
| Protocol |
Modbus RTU, Modbus TCP |
| MMI (Man Machine Interface) |
| LCD |
2.8” TFT (Resolution 240 x 320 , 65535 colors) |
| Backlight Life |
20,000 hours |
| Brightness |
160 cd/m2 |
| Touch Panel |
Resistive Touch |
| Reset Button |
Yes |
| Electrical |
| Powered from Terminal Block |
+12 ~ 48 VDC |
| Powered PoE |
IEEE 802.3af, Class1 (48 V) |
| Power Consumption |
1.5 W |
| Mechanical |
| Dimensions (W x L x H) |
127 mm x 92 mm 31 mm |
| Installation |
Wall Mount |
| Ingress Protection |
Front Panel: IP40 |
| Environmental |
| Operating Temperature |
-20°C ~ +70°C (-4°F ~ +158°F) |
| Storage Temperature |
-30°C ~ +80°C (+86°F ~ +176°F) |
| Ambient Relative Humidity |
10~90% RH, non-condensing |
|
|
|
|
