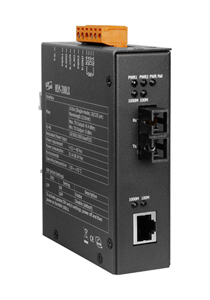

ICP DAS NSM-200LX - 1000 Base-T to 1000 Base-LX/SX Fiber Media Converter, 10 KM distance
by ICP DAS

1000 Base-T to 1000Base-LX/SX Fiber Media Converter (SC type connector). +12 VDC ~ +48 VDC (Non-isolated) 10 km distance, 0.1 A @ VDC Power Consumption. Provides Link Fault Pass-through (LFP). Has operating temperature range of -30°C ~ +75°C (-22°F ~ +167°F)

Description
Specification
Datasheet

ICP DAS USA's NSM-200LX is a rich 10/100/1000 SFP Media Converter which transparently connects copper to SFP for multimode or single mode fiber. The NSM-200LX 10/100/1000 Ethernet to Fiber Converters provide an economical path to extend the distance of an existing network, the life of non-fiber based equipment, or the distance between two devices. The pluggable fiber optics port allows for flexible network configurations using SFP transceivers supplied by ICP DAS or other manufacturers of MSA (Multi-source Agreement) compliant SFPs.

Provides 1 x 1000 Mbps fiber port with SC type connector for 1000 Base-SX/LX device
Supports wide operating temperatures from -30°C ~ +75°C (-22°F ~ +167°F)
Transparent to jumbo packets up to 10 KB
Provides Link Fault Pass-through (LFP)
Supports redundant +12 VDC ~ +48 VDC power input

nterface
RJ-45 Port	10/100/1000 Base-T(X) auto negotiation speed and auto MDI/MDI-X connection
Fiber Port	Multi-mode: Up to 2 Km; Single-mode: Up to 10 km
LED Indicators	PWR1, PWR2, P-Fail, Link/Act, 100M, 1000M
Optical Fiber	50/125 μm (Multi-mode)
Distance	10 km
Wavelength	1310 nm
Min. TX Output	-9.4 dBm
Max. TX Output	-3 dBm
Max. RX Sensitivity	-20dBm
Min. RX Overload	-3 dBm
Power
Input Voltage Range	+12 VDC ~ +48 VDC (Non-isolated)
Power Consumption	0.1 A @ 24 VDC
Mechanical
Dimension (W x L x H)	34 mm x 111 mm x 121 mm
Installation	DIN-Rail Mounting (optional wall mounting kits)
Environmental
Operating Temperature	-30°C ~ +75°C (-22°F ~ +167°F)
Storage Temperature	-40°C ~ +85°C (-40°F ~ +185°F)
Ambient Relative Humidity	10% ~ 90% RH, non-condensing
