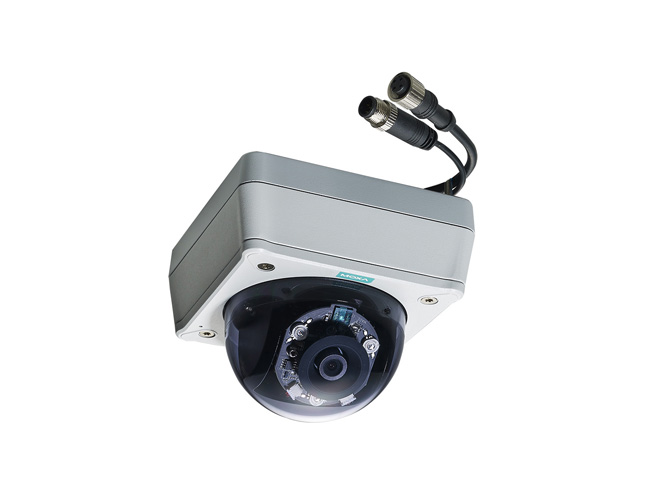

Moxa VPort P16-1MP-M12-IR-CAM80-T - EN50155, HD image, fixed-dome IP camera, PoE, M12 connector, 8.0mm lens, -40 to 70 Degree C
by MOXA

The rugged VPort P16-1MP-M12-IR-CAM80-T cameras produce HD (720P, 1280 x 720) video images and feature an H.264/MJPEG IP dome, giving them the versatility and ruggedness needed for mobile IP video surveillance applications in a variety of different installations and environments. In addition, the cameras feature EN 50155 compliance, vandal-proofing (EN 62262 IK10), a -25 to 55°C or -40 to 70°C (T models) operating temperature, a rugged M12 Ethernet port, PoE power input, a built-in microphone, a digital input, IP66 rain and dust protection, and an IR illuminator for day & night image capability.



• Camera
Sensor	1/2.7” HD progressive scan CMOS
Lens	3.6, 8 mm fixed focal length
Angle of View	• 3.6 mm, F1.6: Diagonal 120°, Horizontal 96°, Vertical 56° • 8.0 mm, F1.8: Diagonal 48°, Horizontal 38°, Vertical 24°
Illumination (low light sensitvity)	• Color: 0.2 lux @ F1.2  • B/W: 0.05 lux @ F1.2 (0 lux if IR illuminator is on)
Camera Angle	Pan 350°, Tilt 65° (controlled manually)
ICR Control (for day & night)	Auto
IR Illumination	3 IR LED illuminators, max. 5 meter effective distance.  On/Off controlled manually (night mode) or by the light sensor.
Synchronization	Internal
White Balance	ATW/AWB
Electronic Shutter	Auto, Fixed (1/30 to 1/25000 sec)
S/N Ratio	50 dB (Gamma, Aperture, AGC, OFF; DNR ON)
DNR	Built-in
WDR	Levels 1-8, up to 115 dB
AGC (auto gain control)	2X, 4X, 8X, 16X, 32X, 64X
Flickerless Control	Automatic / 50 Hz / 60 Hz
Auto Exposure	Level ±5
Image Rotation	Flip, Mirror, and 180° rotation
Image Setting	Manual tuning with saturation, sharpness, and contrast
Black Level Control	High/Medium/Low
• Video
Video Compression	H.264 (ISO/IEC 14496-10) or MJPEG
Video Output	via Ethernet
Video Streams	3 independent H.264 or MJPEG video streams
Video Resolution and FPS (frames per second)	NTSC PAL   Size Max. FPS Size Max. FPS QCIF 176 x 112 30 176 x 144 25 CIF 352 x 240 30 352 x 288 25 VGA 640 x 480 30 640 x 480 25 4CIF 704 x 480 30 704 x 576 25 Full D1 720 x 480 30 720 x 576 25 SVGA 800 x 600 30 800 x 600 25 HD 1280 x 720 30 1280 x 800 25 WXGA 1280 x 800 30 1280 x 800 25
Video Viewing	• CBR Pro™ for good image quality in limited bandwidth transmissions • DynaStream™ support for automatic frame rate adjustment • 3 configurable privacy mask areas • Adjustable image size and quality • Timestamp and text overlay • OSD (On Scr
• Audio
Audio Inputs	1, built-in microphone
Audio Format	Mono, PCM (G.711)
• Network
Protocols	TCP/IP, UDP, HTTP, SMTP, NTP, DNS, DHCP, UPnP, RTP, RTSP, ICMP, QoS, IGMPv3, SNMPv1/v2c/v3, DDNS, TFTP, ARP, DHCP, OPT66/67
Ethernet	1 10/100BaseT(X) Ethernet port, 4-pin M12 Dcode female connector, with 20 cm cable
• GPIO
Digital Inputs	1, 5-pin M12 male connector with 20 cm cable • High: +13 V to +30 V • Low: -30 V to +3 V
• Power Requirements
Input	Power-over-Ethernet (IEEE 802.3af)
Power Consumption	8 W (max.)
• Physical Characteristics
Housing	Metal housing and dome cover with IP66 rain and dust protection
Dimensions	125 x 125 x 120.7 mm (5.6 x 5.6 x 4.8 in)
Weight	820 g (1.8 lb)
Installation	Surface (ceiling) mounting, flush (recessed) mounting
• Alarms
Intelligent Video	Camera tamper
Video Motion Detection	3 independently configurable areas
Scheduling	Daily repeat timing schedule
Imaging	JPEG snapshots for pre/trigger/post alarm images
Custom Alarms	HTTP event servers for setting customized alarm actions
Email/FTP Messaging	Automatic transfer of stored images via email or FTP as event-triggered actions
Pre-alarm Buffer	12 MB video buffer for JPEG snapshot images
• Security
Password	User level password protection
Filtering	By IP address
Encryption	HTTPS, SSH
• Environmental Limits
Operating Temperature	Standard models: -25 to 55°C (-13 to 131°F) Wide Temp. model: -40 to 70°C (-40 to 158°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Altitude	2000 m  Note: Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
• Standards and Certifications
Safety	UL 60950-1
Rail Traffic	EN 50155* *This product is suitable for rolling stock railway applications, as defined  by the EN 50155 standard. For a more detailed statement, click here:www.moxa.com/doc/specs/EN_50155_Compliance.pdf
EMI	FCC Part 15, CISPR (EN 55032) Class A
EMS	IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8
Shock	IEC 61373
Freefall	IEC 60068-2-32
Vibration	IEC 61373
Vandal Resistance	EN 62262, IK10 level
Salt Spray Test	ASTM B117  Note: Please check Moxa’s website for the most up-to-date certification status.
• MTBF (mean time between failures)
Time	1052184 hrs
Standard	Telcordia TR/SR
• Warranty
Warranty Period	5 years
Details	See www.moxa.com/warranty
• Minimum Viewing System Requirements
CPU	Pentium 4, 2.4 GHz
Memory	512 MB of memory
OS	Windows XP with SP3 or above, Windows 7
Browser	Internet Explorer 8.x or above
Multimedia	DirectX 9.0c or above
• Software Development
VPort SDK PLUS	Includes CGI commands, ActiveX Control, and API library for customized applications or system integration for third-party developers (the latest version of SDK is available for download from Moxa’s website).
Standard	ONVIF Profile S
