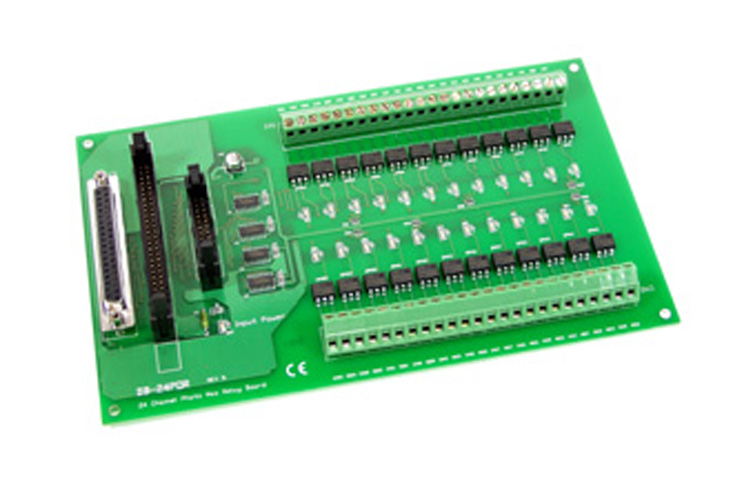

ICP DAS DB-24POR/DIN - DB-24POR with DIN-Rail Mounting Kit
by ICP DAS
|
|
|
|
24 Channel Photo Mos Relay Output Board with 1.5 meter 50 Pin Flat Cable
|
|
|
The DB-24POR has 24 channels of optically isolated Photo-Mos Relay , and OPTO-22 compatible connector.
- 24 Photo Mos Relay
- One OPTO-22 Compatible Connector and one 37-pin D-sub connector and one 20-pin connector
- Connects directly to OPTO-22 compatible board or any 722,724 series board
- LED’s indicated relay status
- Screw terminals for easy field wiring
- 5,000Vdc optical isolation
| Turn-on time |
0.7ms (typical) |
| Turn-off time |
0.05ms (typical) |
| Output On resistance |
23 ohm (typical) |
| Load voltage |
350V (peak AC) |
| Power dissipation |
500mW |
| Countinuous load current |
0.13A |
| Power Consumption |
+5V @0.3A max |
| Dimension |
213mm x 132mm |
| Operating Temperature |
0 -60°C |
| Storage Temperature |
-20~70°C |
| Humidity |
5% to 90 % noncondensing |
| PhotoMos Relay |
|
|
|
|
