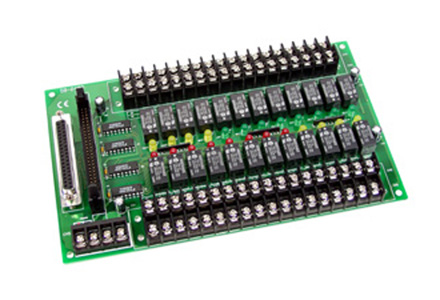

The DB-24R consists of 24 form C, electromechanical relays for efficient switching of load by programmed control. The contact of each relay can control a 0.5 A /110 V load or 1A / 24VDC. The relay is energized by applying a 5 voltage signal to the appropriate relay channel on the 50-pin Opto-22 compatible connector or D-Sub 37 connector . Twenty-four enunciator LEDs, one for each relay, light when their associated relay is activated . This board needs a +12VDC or +24VDC external power supply to avoid overloading your PC’s power supply.
- 24 Form C Relays (SPDT)
- SPST: Single Pole Double Throw
- OPTO-22 Compatible Connector
- Connects directly to:
- DIO-24
- DIO-48
- DIO-144
- OPTO-22 compatible board or any 722 or 724 series board
- Switch up to 0.5A at 120 VAC
- Switch up to 1A at 24VDC
- On board relay driver circuits
- LEDs indicated relay status
- Screw terminals for easy field wiring
- On/off control
- Energy management
- Test Automation
- Process Control
| Type |
1 form C |
| Nominal load |
0.5 A /120 VAC, 1A /24 VDC |
| Max. Switching power |
60VA, 24W |
| Max. Switching Voltage |
120VAC, 60VDC |
| Max. Switching Current |
1A |
| Life Expectancy |
Mechanical ( 2 x 10 ) |
| Electrical ( 2 x 10 ) |
| Time Value |
Operate ( 6 ms ) |
| Control Logic |
Input TTL high (+5V) , relay on |
| Power Consumption |
+12V @0.3A max , +5V @ 0.18A max |
| Dimensions |
225mm x 132mm |
| Operating Temperature |
0° - 60°C |
| Storage Temperature |
-20~70°C |
| Humidity |
5% to 90 % noncondensing |
| FORM C RELAY |
|
