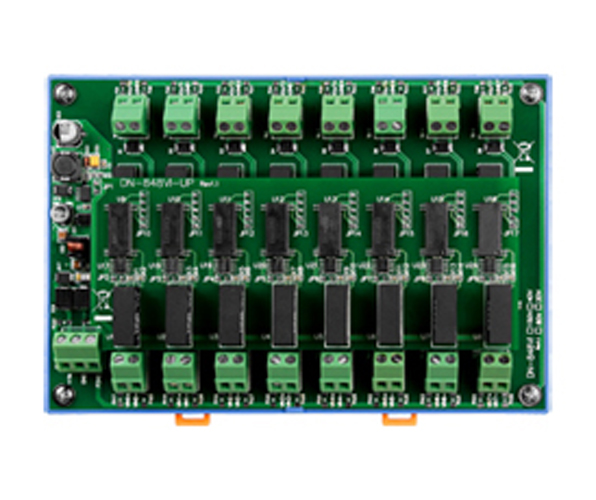

ICP DAS DN-848VI-80V - 8 Channel 80 VDC Voltage Attenuator with Channel to Channel Isolation
by ICP DAS
|
|
|
|
8-channel voltage input attenuator with channel to channel isolation
|
|
|
Features
The DN-843V-80 is a voltage input attenuator. The maximum input range is ±80 V and will be attenuated to ±10 V. It can be used with the analog input modules such as I-7017R and I-87017R etc. to monitor or measure the high voltage.
- AC/DC Source Input
- Linear Attenuation Ratio
- High Input Impedance
- 4 kV ESD Protection
- RoHS Compliance
- A Wide Range of Operating Temperature: -25 °C ~ +75 °C
- Easily wire connection
Applications
- High Voltage Power Monitor
- Voltage Attenuator
| General |
| Channels |
8 |
| Input Type |
AC/DC Voltage |
| Output Type |
AC/DC Voltage |
| Transformation Rate |
±80 Vpp to ±10 Vpp (80 V Level)
Voltage Unit: Peak to Peak Value |
| Max. Input Frequency |
30 kHz |
| Input Impedance |
> 1 Mohm |
| Accuracy of Max. Voltage output |
≦1% |
| ESD Protection |
4 kV, contact for each terminal |
| Power |
| Power Consumption |
7.5 W max. @ 24 V |
| Environment |
| Operating Temperature |
-25 °C ~ 75 °C |
| Storage Temperature |
-30 °C ~ 75 °C |
| Humidity |
5% ~ 95% RH, Non-condensing |
|
|
|
|
