ICP DAS DN-DO-16DR-A - 16 points (P0 ~ P15), Removable 2A relay output with vatistor for F-8041
by ICP DAS
|
|
|
|
Termination board for digital output with high EMS protection and removable relay (Ch0 ~ 15), for DCS systems
|
|
|

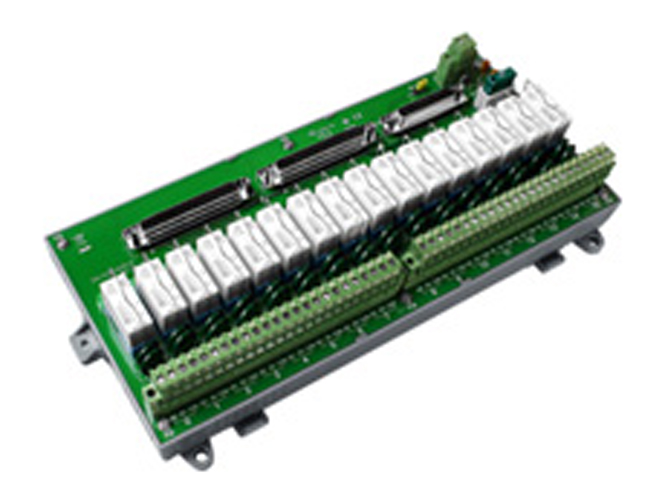

The DN-DO-16DR-A & DN-DO-16DR-B are termination boards with relay (Form C, SPDT) output. The DN-DO-16DR-A is used for digital output channel 0~15, and the DN-DO-16DR-B is used for digital output channel 16~31. These boards offer 2 output for each channel to extend control logic due to the Form C relay, it can be positive (N.O.) or negative (N.C.) logic output or both. In addition, each channel is built-in two varistors on N.O. and N.C. channel to protect against high-voltage transients and surges to the control loop.
| Model |
DN-DO-16DR-A |
DN-DO-16DR-B |
| Digital Output |
| Type |
Form C Relay |
| Relay Contact |
| Contact configuration |
SPDT |
| Rated current/Max. peak current |
6 A/10 A |
| Rated voltage/Max. switching voltage |
250 VAC/400 VAC |
| Minimum switching Load |
300 mW |
| Mechanical life |
20 x 106 |
| Operate/release time |
8/5 ms |
| Relay Coil |
| Voltage input |
24 VDC ± 10% |
| Current consumption |
400 mA@24 VDC |
| Varistor Protection |
| Max. applied voltage (Continuous) |
AC: 300 Vrms
DC: 385 VDC |
| Rated voltage |
470 Vrms |
| General |
| Dimension (W x L x H) |
126.6 x 274.6 x 25.5 mm |
| Mounting |
35 mm DIN Rail, Wall |
| Ambient Temperature |
-25 ~ 75 °C |
| Humidity |
5 ~ 95 % RH, Non-condensing |
|
|
|
|
