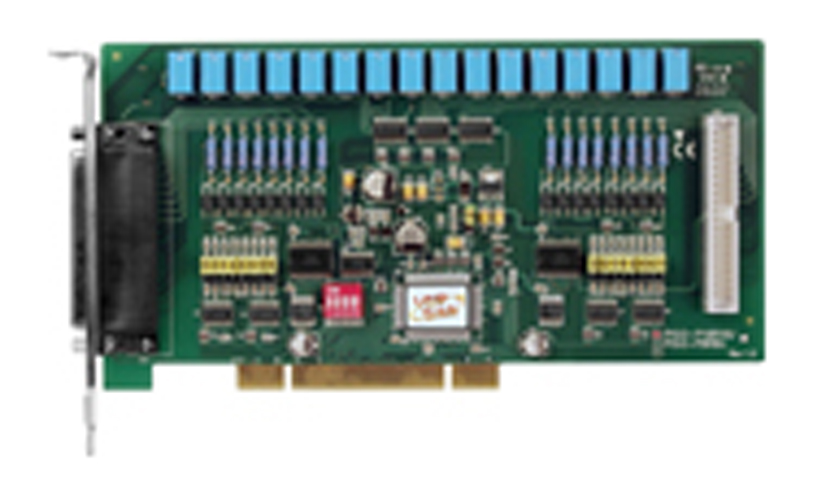

ICP DAS PISO-P16R16U - Universal PCI 16- channel isolated digital input, 16- channel relay output
by ICP DAS

The PISO-P16R16U is a universal PCI card which supports both the 5V and 3.3V PCI bus. The PISO-P16R16E is a PCI Express card which supports PCI-Express bus. They provide 16 optically isolated (3750V) digital inputs and 16 relay outputs. The PISO-P16R16U and P16R16E have one 37-pin D-Sub connector and one 40-pin connector, along with one CA-4037W (40-pin to 37-pin conversion cable) and two CA-4002 connectors for users easily wiring.

• 16-channel relay outputs
• 16-channel optical isolated (3750V) digital inputs
• DC signal input with filter or without filter
• AC Signal input with filter
• Supports CardID (dip-switch)
• PCI-Express, supports both +3.3V and +12V PCI-Express bus with the PISO-P16R16E
• Universal PCI, supports both 5V and 3.3V PCI bus with the PISO-P16R16U
• Software:
  • DOS Lib and TC/BC/MSC sample program (with source codes)
  • DLL and OCX SDK for Windows 95/98/ME/NT4.0/2K/XP(32Bit)/2003(32Bit)/Vista(32Bit)
  • VB/VC/Delphi/BCB/VB.NET/C#.NET sample programs with source codes are included
  • LabVIEW toolkit for Windows
  • Driver for Linux

Model Name		PISO-P16R16U	PISO-P16R16E
Bus Type		Universal PCI (+3.3V/+5V)	PCI-Express X 1 (+3.3V/+12V)
Relay Output	Contact Rating	0.5A/120Vac,1A/24Vdc
	Relay Type	8 SPDT 8 SPST
	Operating Time	Typical 1 ms
	Release Time	Typical 7 ms
	Expected life	Mechanical(5 millions); electrical (1 millions)
Optical Isolated Digital Input	Type	None-polarized opto-isolated (PC-354)
	Operating Temperature	0~60°C
	Input voltage	Logic '1' : AC/DC 5~24V
		Logic '0' : AC/DC 0~1V
	Input impedance	1.2 K ohm
	Response time	20u Sec (Without filter) / 2.2m Sec ( With filter)
	Isolated Voltage	3750V
Environmental	Operating temperature	0~60°C
	Storage temperature	-20 °C ~ 70 °C
	Humidity	0 ~ 90% RH, non-condensing
Dimensions	Dimensions	205 mm x 105 mm
