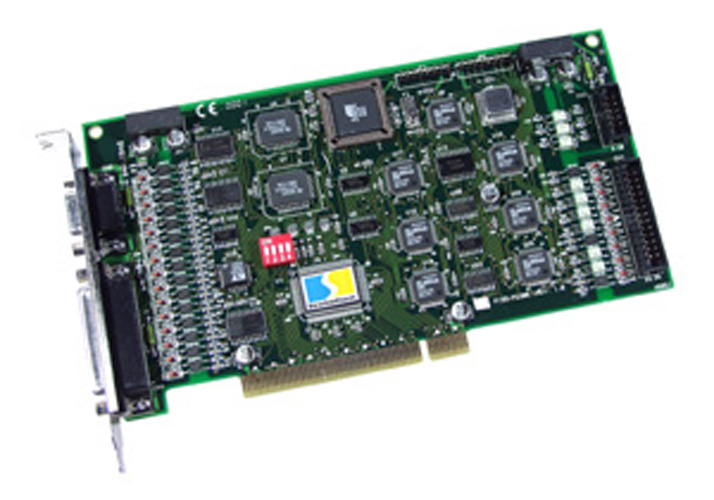

ICP DAS PISO-PS300 - PCI Bus 3 axes stepper motor / servo control board
by ICP DAS
|
|
|
|
3-Axis High Speed Stepping / Servo Control Board
|
|
|
The PISO-PS300 is a 3-axis Pulse command type, servo motor control board. The embedded CPU of PISO-PS300 performs the motion command transferred from a host-PC via a 2K bytes FIFO. It also sends the position and status to the host-PC via another 2K bytes FIFO. This buffer provides a time buffer and it is very suitable for windows operating systems. DOS, windows 95 and windows NT drivers are provided.
| 3-axis Pulse-command servo motor board |
| Embedded CPU |
| Max. Pulse rate |
1 MHz |
| 3 Axis linear interpolation, Circular interpolation |
| Programmable trapezidal speed profile |
| Programmable DDA cycle |
| Hardware emergency stop |
| DOS, Windows 95, Windows NT driver |
| 8 digital input, 7 digital output |
| Dimensions |
208mm x 121mm |
|
|
|
|
