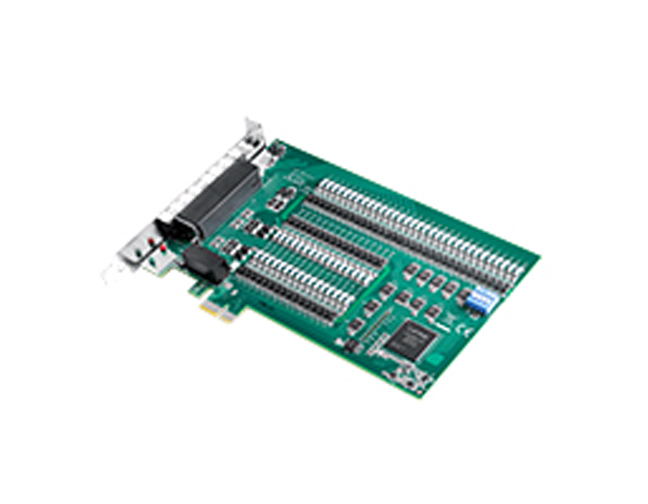

Advantech PCIE-1758DI-AE - 128ch Isolated Digital Input Card
by Advantech
|
|
|
|
128-ch Isolated Digital I/O PCIE Card
- Interrupt handling capability for each channel
- 128 isolated digital output channels (64 channels for PCI-1758UDIO)
- High-voltage isolation on output channels (2,500 VDC)
- Wide output range (5 ~ 40 VDC)
- High sink current for isolated output channels (350 mA max./channel)
- BoardID™ switch
- Digital output value retained after hot system reset
- PCIE-1758DI and PCIE-1758DIO
- 128 isolated digital input channels (64 channels for PCI-1758UDIO)
- Wide input range (10 ~ 30 VDC)
- High ESD protection (2,000 VDC)
- Digital Filter function
- PCIE-1758DO and PCIE-1758DIO
|
|
|
Advantech PCIE-1758DI-AE
- Interrupt handling capability for each channel
- 128 isolated digital output channels (64 channels for PCI-1758UDIO)
- High-voltage isolation on output channels (2,500 VDC)
- Wide output range (5 ~ 40 VDC)
- High sink current for isolated output channels (350 mA max./channel)
- BoardID™ switch
- Digital output value retained after hot system reset
- PCIE-1758DI and PCIE-1758DIO
- 128 isolated digital input channels (64 channels for PCI-1758UDIO)
- Wide input range (10 ~ 30 VDC)
- High ESD protection (2,000 VDC)
- Digital Filter function
- PCIE-1758DO and PCIE-1758DIO
|
|
|
|
