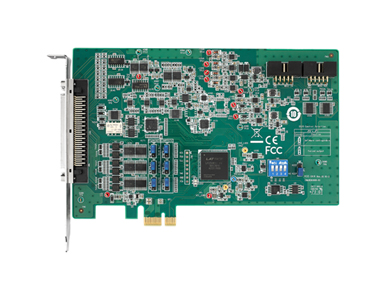

Advantech PCIE-1816H-B

Advantech PCIE-1816H-B - 16ch, 16bit, 5MS/s PCIE Multifunction Card
by Advantech

1 MS/s, 16-bit, 16-ch Multifunction PCIE Card

16 analog inputs, up to 1 MS/s, 16-bit resolution
2 analog outputs up to 3 MS/s, 16-bit resolution
Support Analog and Digital Trigger for AI/O
Support Waveform generation for AO
24 programmable digital I/O lines
Two 32-bit programmable counter/timers
Onboard FIFO memory (8k samples)
Support for Microsoft Windows 10/11 and Linux

Description
Specification
Datasheet

Advantech PCIE-1816H-B

PCIE-1816/1816H is a 16-ch (up to 5 MS/s) multifunction DAQ card with integrated digital I/O, analog I/O, and counter functions. PCIE-1816/1816H also features analog and digital triggering support, 2-ch 16-bit analog outputs with waveform generation capability, 24-ch programmable digital I/O lines, and two 32-bit general purpose timer/counters.
