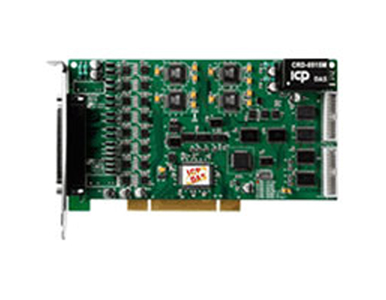

ICP DAS PIO-DA8U/S - PIO-DA8 with DN-37
by ICP DAS
|
|
|
|
Universal PCI 8-channel D/A board
|
|
|
The PISO-DA8U and PIO-DA8U analog output boards support universal PCI interface (3.3 V/5 V PCI). These cards are equipped with 14-bit 8 analog output channels. Each of the D/A channels features double-buffered latch. The PISO-DAxU and the PIO-DAxU series cards (universal PCI versions) are fully compatible with the PIO-DAx cards (PCI versions) and users can replace the PIO-DAx by PISO-DAxU or PIO-DAxU directly without software/driver modification.
The PISO-DA series adds high-voltage isolation design that offers a durable ability to keep users' computers safe from unexpected surge. It is the built-in high-quality isolation components that make PISO-DA series featuring 2500 VDC bus-typed isolation! For the PIO-DA and the PISO-DA series, their voltage output range is from -10 V to +10 V, and their current output range is from 0 to 20 mA. In addition, PISO-DA series and PIO-DA series also feature the following advantages by ICP DAS's innovation:
- Accurate and easy-to-use calibration.
ICP DAS provides the software calibration instead of the manual calibration so that no jumpers and trim-pots are required anymore. The calibration information can be saved in EEPROM for long-term use.
- Individual channel configuration.
In other words, every channel can be individually configured as voltage output or current output!
- Card ID.
ICP DAS provides the card ID function for PISO-DA series and PIO-DA8U (version 1.1 or above). Users can set card ID for each card and then recognize them one by one when more than two boards are used in a computer.
PISO-DA series and PIO-DA series support a wide range of operating systems like Linux, DOS, Windows 98/NT/2000 and 32-bit Windows XP/Vista/7. Moreover, ICP DAS provides all the DLL and Active X for users, and sample programs covering from Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabView are also provided for intuitive and fast learning!
- Supports +5 V PCI bus for PIO-DA8
- 16/8/4 channels, 14-bit analog output
- Voltage output range: ±10 V
- Current output range: 0 ~ 20 mA (sink)
- Two pacer timer interrupt source
- Double-buffered D/A latch
- Software calibration
- 16-channel DI, 16-channel DO
- One D-Sub connector, two 20-pin flat cable connectors
- Connects directly to DB-16P, DB-16R, DB-24C, DB-24PR and DB-24POR
- Supports both +5 V and +3.3 V PCI bus
- 2500 VDC bus-type and power isolation protection
- Digital input port can be set to pull-high or pull-low
- Card ID function, (Version 1.1 or above)
| Analog Outputs |
| Isolation Voltage |
N/A |
| Channels |
8 independent |
| Resolution |
14-bit |
| Accuracy |
0.01% of FSR ± 2 LSB @ 25 °C, ± 10 V |
| Output Range |
Voltage: +/- 10 V
Current: 0 ~ 20 mA |
| Output Driving |
+/- 5 mA |
| Slew Rate |
0.71 V/μs |
| Output Impedance |
0.1 Ω max. |
| Operating Mode |
Software |
| Digital Inputs |
| Channels |
16 |
| Compatibility |
5 V/TTL |
| Input Voltage |
Logic 0: 0.8 V max.
Logic 1: 2.0 V min. |
| Response Speed |
1.0 MHz (Typical) |
| Digital Outputs |
| Channels |
16 |
| Compatibility |
5 V/TTL |
| Output Voltage |
Logic 0: 0.4 V max.
Logic 1: 2.4 V min. |
| Output Capability |
Sink: 2.4 mA @ 0.8 V
Source: 0.8 mA @ 2.0 V |
| Response Speed |
1.0 MHz (Typical) |
| Timer/Counter |
| Channels |
3 |
| Resolution |
16-bit |
| Compatibility |
5 V/TTL |
| Reference Clock |
Internal: 4 MHz |
| General |
| Bus Type |
3.3 V / 5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus |
8-bit |
| Card ID |
Yes(4-bit) for Version 1.1 or above |
| I/O Connector |
Female DB37 x 1
20-pin Box header x 2 |
| Dimensions (L x W) |
188 mm x 97 mm
(Version 1.1 or above) |
| Power Consumption |
800 mA@ +5 V (PIO-DA8U) |
| Operating Temperature |
0 ~ 60 °C |
| Storage temperature |
-20 ~ 70 °C |
| Humidity |
5 ~ 85% RH, non-condensing |
|
|
|
|
