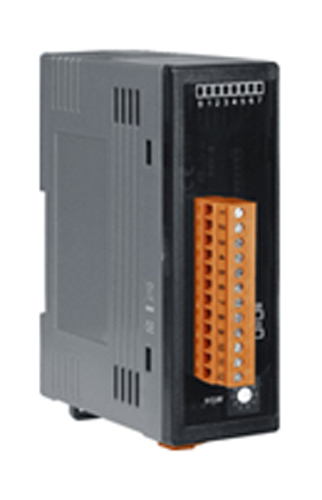

ICP DAS FR-2152T - 8 points isolated digital input with screw terminal connector
by ICP DAS
|
|
|
|
8-channel FRNet isolated digital input with 12-pin screw terminal connector.
|
|
|
The FR-2152T/FR-2152TA has 8-channel isolated photo-coupler input and the transfer speed is fixed at 1M bps. The default signal connector of FR-2152T/FR-2152TA is a 12-pin 0.15” screw terminal connector. FR-2152T and 2152TA each apply respectively to NPN-type and PNP-type discrete output modules.
According to different applications, the users can choose suitable modules. The FR-2100 I/O module has a FRNet interface. The users can daisy chain several FR-2100 modules together. Via FRNet, the FR-2100 modules can extend the discrete I/O control of PC and PAC easily. For further information about the networking of FR-2100 series; please refer to literature related to I-7188EF, I-8172, FRB-200.
Built-in Wire-saving FRnet DI/DO control
High-speed transmission reliability
Simple synchronization mechanism
No software overhead on protocol processing
Supporting broadcasting (1:n data transmission)
Duplicating output easily Fixed I/O scan-time and I/O synchronization
DIN-Rail mountable
Industrial Automation
Remote I/O control
Wire-saving application
Built-in Wire-saving FRnet DI/DO control
| 6P4C RJ-11 modular connector with Cat.3 cable (2P twisted-pair cable) for easy wiring( When different cables are used, the transmission distance may change). |
| Power consumption |
2.0 W (Max.) |
| Power requirement |
12-24 V DC |
| Operating temperature |
-25°C to +65 °C |
| Operating humidity |
10% ~ 95% RH, non-condensing |
| Storage temperature |
-30°C to +85°C |
| Storage humidity |
5% ~ 95% RH, non-condensing |
| Weight |
approximately 120g |
| Dimensions |
99 mm x 32 mm x 83 mm |
| Input Isolation |
1 KVdc |
| Input Impedance |
4.7 K Ohm |
| Input points |
8 channels |
| Input Voltage range |
Logic H: 10~24 V |
| Logic L: 0~3 V |
| Response Time |
Turn-On delay time: less than 0.15 ms |
| Turn-Off delay time: less than 0.05 ms |
| Transmission |
Transfer speed:1 M bps |
| Cyclic scan time:0.72 ms |
| Transfer distance:Max. 100 m |
|
|
|
|
