ICP DAS I-8091W - 2-axis stepping / servo motor control module
by ICP DAS

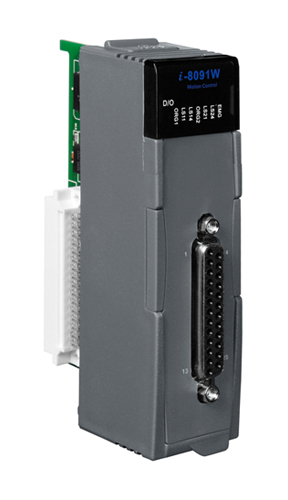

I-8091W stepping motor control card is a micro-computer controlled, 2-axis pulse generation card. It includes a 2K bytes FIFO to receive motion command from host. A micro-computer for profile generation and protection, 2-axis DDA chip to execute DDA function when interpolation command is used, 2500Vrms optical isolation inserted for industrial application.

DN-25+CA-2520

• 2-axis independent, simultaneous stepper motor control / servo motor control ( pulse input type )
• Maximum pulse rate : 1Mpps
• Maximum step counts: 232 -1 steps
• Embedded CPU
• Command type interface
• 2-axis linear,2-axis circular interpolation
• Automatic trapezoidal acceleration / deceleration
• Output pulse modes : CW/CCW or pulse/direction
• Output polarity can be programmable
• 3 optical isolated digital inputs per axis for limit switches
• Programmable limit switch initial condition as normal open(N.O.) or normal close(N.C.)
