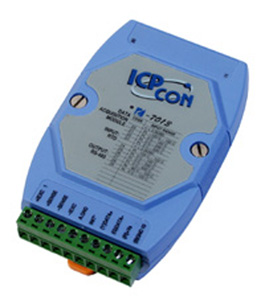

ICP DAS I-7013 - RTD input module
by ICP DAS

RTD Input Data Acquisition Module with 1 Analog Channel (RTD input type), communicable over RS-485, and FREE EZ Data Logger Software. Supports operating temperatures between -25°C ~ +75°C (-13°F ~ +167°F).

Description
Specification
Datasheet

I-7013 is a single channel RTD Input Module. I-7013 is a cost-effective solution for a wide range of valuable industrial control signals and systems. The DCON utility can help users to configure and test I-7013 modules. Plenty of library functions and demo programs are provided to let users develop programs easily under Windows, Linux and DOS operating systems. Users may mount the modules on a DIN rail, panel or wall. Modules have a screw-terminal block to connect to the signals. I-7013 comes with FREE EZ Data Logger Software.

automation app

Analog Input
Input Channels	1
Input Type	RTD
Wire connection	2/3/4 wire
RTD Type	Pt100 α=0.00385, Pt100 α=0.003916, Ni120, Pt1000 α=0.00385
Resolution	16-bit
Sampling Rate	10 Samples/ Second
Accuracy	+/-0.05%
-3dB BandWidth	5.24 Hz
Zero drift	+/-0.5uV/ °C
Span drift	+/-25uV/°C
Common Mode Rejection	150dB min.
Normal Mode Rejection	100dB
Open Wire Detection	Yes
Overvoltage Protection	+/-5V (P-P)
Intra-module Isolation, Field to Logic	3000 VDC
Interface
Interface	RS-485
Format	N, 8, 1
Baud Rate	1200 ~ 115200bps
LED Display
1 LED as Power/ Communication indicator
4 1/2 digits (for I-7013D)
Power
Input Voltage Range	+10 to +30 Vdc
Power Consumption	0.7W (I-7013) / 1.3W (I-7013D)
Environment
Operating temperature	-25 to 75°C
Storage temperature	-40 to 85°C
Humidity	5 to 95% RH, non-condensing

Type Code	RTD Type	Temperature Range °C
20	Platinum 100, α= 0.00385	-100 ~ 100
21	Platinum 100, α= 0.00385	0 ~ 100
22	Platinum 100, α= 0.00385	0 ~ 200
23	Platinum 100, α= 0.00385	0 ~ 600
24	Platinum 100, α= 0.003916	-100 ~ 100
25	Platinum 100, α= 0.003916	0 ~ 100
26	Platinum 100, α= 0.003916	0 ~ 200
27	Platinum 100, α= 0.003916	0 ~ 600
28	Nickel 120	-80 ~ 100
29	Nickel 120	0 ~ 100
2A	Platinum 1000, α= 0.00385	-200 ~ 600
2E	PT 100, α= 0.00385	-200°C ~ +200°C
2F	PT 100, α= 0.003916	-200°C ~ +200°C
80	PT 100, α= 0.00385	-200°C ~ +600°C
81	PT 100, α= 0.003916	-200°C ~ +600°C
