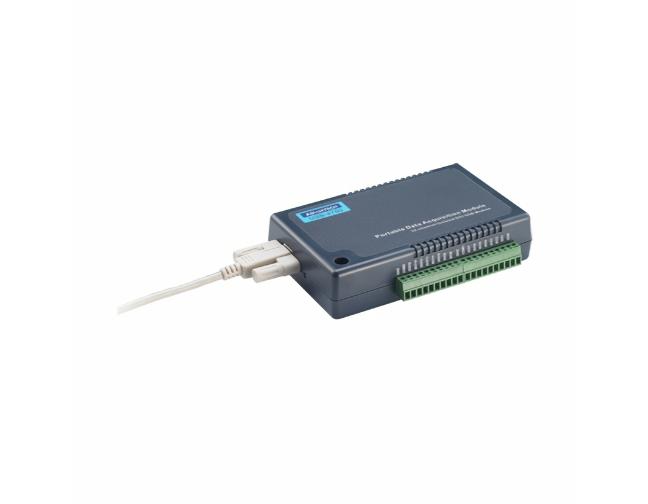

USB-4761-CE - 8ch Relay & 8ch Isolated DI USB Module

Advantech USB-4761-CE - 8ch Relay & 8ch Isolated DI USB Module
by Advantech

USB-4761-CE_SUMMARY.html

Portable; Compatible with 1.1/2.0
Bus-powered
8 relay output channels and 8 isolated digital input channels; 8 Form C type relay output channels
LED indicators to show activated relays
High-voltage isolation on input channels (2,500 VDC)
High ESD protection (2,000 VDC); Wide input range (5 ~ 30 VDC)
Interrupt handling capability
Suitable for DIN-rail mounting; Detachable screw terminal on modules
One lockable USB cable for secure connection included

USB-4761-CE_DESCRIPTION.html USB-4761-CE - 8ch Relay & 8ch Isolated DI USB Module

USB-4761-CE.html

Category	Attribute	Value
General	Programming Language	C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
Digital Input	Channels	8 (Isolated)
Digital Input	Isolation Protection	2,500 VDC
Relay Output	Channels	8 Form C
Relay Output	Contact Rating (Resistive)	1 A @ 30 VDC, 0.3 A @ 110 VAC, 0.5 A @ 120 VAC, 0.25 A @ 240 VAC
