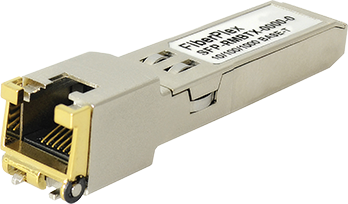

Patton SFP-RTMTXC-0000-0 - SFP, RJ45, Copper 10/100 Ethernet Transceiver, MSA
by PATTON
|
|
|
|
- Up to 1.25 Gbps bi-directional data links
- 1000BASE-T operation in host systems with SERDES interface
- 10/100/1000 Mbps compliant in host systems with SGMII interface
- Hot-pluggable SFP footprint
- Compact RJ-45 connector assembly
|
|
|
The Patton Model SFP-RTMTXC-0000-0 series are high performance Copper SFP transceivers are Gigabit Ethernet and 10/100/1000BASE-T compliant, supporting 1000 Mbps data-rate up to 328 feet (100 meters) reach over unshielded twisted-pair CAT 5 cable.
The SFP-RTGTXC (10/100/100) and SFP-RTMTXC (10/100) are Copper Small Form Pluggable (SFP) transceivers are high performance, cost effective module compliant with the Ethernet BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supporting 1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair CAT 5 cable. The SFP-RTGTXC supports 1000 Mbps (or 10/100/1000Mbps) full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. Use the SFP-RTMTXC for 10/100-BASE-T applications when connecting to Gigabit auto negotiating ports.
The specifications for this product are contained in the User Manual
|
|
|
|
