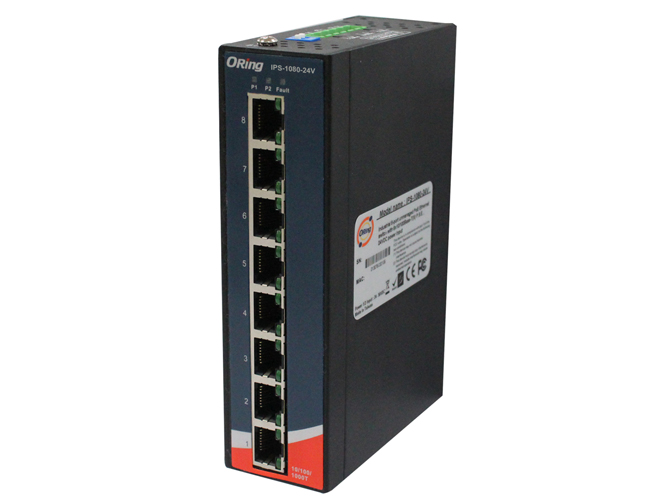

ORing IPS-1080-24V - 8FE PoE Unmanaged Ethernet Switch, IEEE 802.3af/at, 24VDC, Slim Type 8 x 10/100TX (RJ-45) PoE+ (30Watts)
by ORing Industrial Networking
|
|
|
|
IPS-1080-24V
- Provide 8x10/100Base-T(X) PoE (P.S.E.) ports
- Supports IEEE 802.3at compliant PoE and total power budget is 120Watts with
maximum 30Watts per port
- Advanced PoE power boost technology to support dual 24VDC power inputs
- Support auto-negotiation and auto-MDI/MDI-X
- Support store and forward transmission
- Support flow control
- Warning system by relay output
- Slim type rigid IP-30 housing design
- DIN-Rail and wall mounting enabled
|
|
|
IPS-1080-24V is unmanaged PoE Ethernet switch with P.S.E. function.
IPS-1080-24V supports Power over Ethernet, a system to transmit electrical
power, along with data, to remote devices over standard twisted-pair cable in an
Ethernet network. IPS-1080-24V switch has 8X10/100Base-T(X) P.S.E. (Power
Sourcing Equipment) ports. P.S.E. is a device (switch or hub for instance) that
will provide power in a PoE setup. The wide operating temperature range from -40
to 70°C can satisfy most of operating
environment. Therefore, the switch is one of the most reliable choices for PoE
Ethernet application.
| Physical Ports |
|
| 10/100Base-T(X) Ports in RJ45 Auto MDI/MDIX with P.S.E. |
8 |
| Technology |
|
| Ethernet Standards |
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3x for Flow control
IEEE 802.3at PoE specification (toal power budget is 120Watts with
maximum 30Watts per port) |
| MAC Table |
2048 MAC addressessses |
| Processing |
Store-and-Forward |
| LED Indicators |
|
| Power Indicator |
Green : Power LED x 2 |
| Fault Indicator |
Amber : Indicate PWR1 or PWR2 failure |
| 10/100Base-T(X) RJ45 Port Indicator and PoE Indicator |
Green for port Link/Act. Green for PoE power injected |
| DIP-Switch |
|
| DIP-Switch 1 |
Power-1 failed warning : (ON) enable / (OFF) disable |
| DIP-Switch 2 |
Power-2 failed warning : (ON) enable / (OFF) disable |
| Fault contact |
|
| Relay |
Relay output to carry capacity of 1A at 24VDC |
| Power |
|
| Redundant Input Power |
Dual DC inputs. 24 ~ 36VDC on 6-pin terminal block |
| Power Consumption (Typ.) |
4.32 Watts (Power consumption of P.S.E. not included) |
| Overload Current Protection |
Present |
| Reverse Polarity Protection |
NOT Present |
| Physical Characteristics |
|
| Enclosure |
IP-30 |
| Dimensions (W x D x H) |
41 (W) x 94.9 (D) x 144.3 (H) mm |
| Weight (g) |
555g |
| Environmental |
|
| Storage Temperature |
-40 to 85°C (-40 to 185°F) |
| Operating Temperature |
-40 to 70°C (-40 to 158°F) |
| Operating Humidity |
5% to 95% Non-condensing |
| Regulatory Approvals |
|
| EMI |
FCC Part 15, CISPR (EN55022) class A, E-Mark |
| EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5
(Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
| Shock |
IEC60068-2-27 |
| Free Fall |
IEC60068-2-32 |
| Vibration |
IEC60068-2-6 |
| Safety |
EN60950-1 |
| Warranty |
5 years |
|
|
|
|
