IGPS-C1082GP - 8GE PoE + 2G SFP Cost-effective Unmanaged

ORing IGPS-C1082GP - 8GE PoE + 2G SFP Cost-effective Unmanaged Ethernet Switch, IEEE 802.3af/at
by ORing Industrial Networking

Name: ORing IGPS-C1082GP - 8GE PoE + 2G SFP Cost-effective Unmanaged Ethernet Switch, IEEE 802.3af/at
Brand: iComTech
SKU: IGPS-C1082GP
Price: 280.0 USD

Write a review

IGPS-C1082GP_SUMMARY.html

Support 8 ports 10/100/1000Base-T(X) P.S.E ports

Support IEEE 802.3at compliant PoE and total power budget is 240Watts with maximum 30Watts per port.

Support 2 ports 100/1000Base-X SFP socket

Support auto-negotiation and auto-MDI/MID-X

Support Store and forward transmission

Support flow control

Provide Relay output for power failed warning system

Rigid IP-40 housing design

DIN-rail mounting enable

Description
Specification
Datasheet

IGPS-C1082GP_DESCRIPTION.html

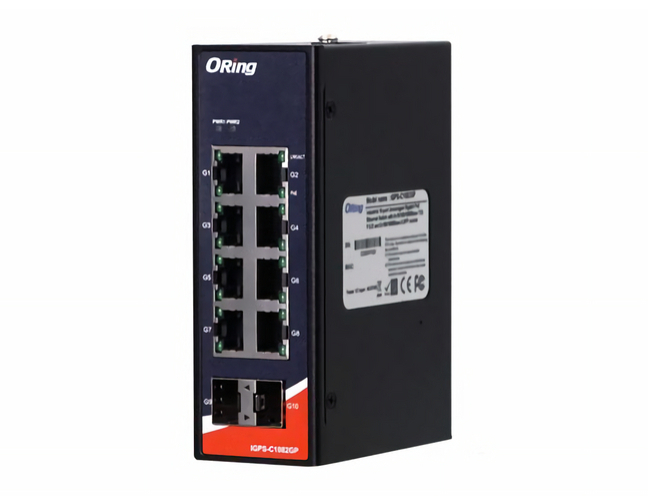

IGPS-C1082GP is unmanaged Ethernet Switch with 8x10/100/1000Base-T(X) P.S.E ports with 2x100/1000Base-X SFP ports and extended operating temperature range from -40? to 75? for the harsh environments. IGPS-C1082GP supports power over Ethernet, a system to transmit electrical power, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. P.S.E is a device (switch or hub for instance) that will provide power in a PoE setup. Therefore, the switch is one of the most reliable choices for rolling stock and highly unmanaged PoE Ethernet application.

IGPS-C1082GP.html

Physical ports
10/100/1000Base-T(X) ports in RJ45	8
100/1000Base-X with SFP port	2

LED Indicators
Power Indicator (Power)	Green: Power LED x2
10/100/1000Base-T(X) RJ45 port indicator	Upper LED for Link/Act indicator: Green for port Link/Act Lower LED for POE indicator: Green for POE output
100/1000Base-X SFP Port Indicator	Green for port Link/Act

Power
Power consumption (Typ.)	6 Watts
Redundant Input power	Dual 48~57VDC on 4-pin terminal block
Overload current protection	Present

Physical Characteristic
Enclosure	IP-40 Metal
Dimensions (mm)	45(W) x 94(D) x 130(H)mm
Weight (g)	656 g

Technology
Ethernet Standards	IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3ab for 1000Base-T IEEE 802.3z for 1000Base-X EEE 802.3x for Flow control IEEE 802.3af/at PoE specification
MAC Table	8K
Processing	Store-and-Forward
Switch Properties	Switching latency: 9 �s Switching bandwidth: 20Gbps
Jumbo frame	9K Bytes
