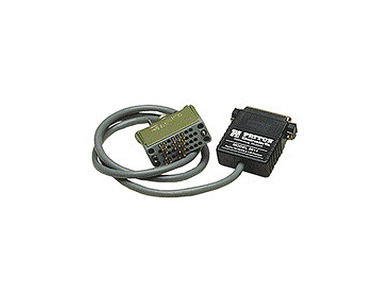

Patton 2014FC-MT - RS422/530(F/DCE)TO V35(M/DTE)
by PATTON
|
|
|
|
- Bi-Directionally Converts Synchronous RS-530 DCE to V.35 DTE
- Supports Data Rates to 2 Mbps, Full or Half Duplex
- Transparent to Protocol
- No AC Power or Batteries Required
- Various Gender Combinations Available
- DB-25 and M/34 Connectors with Integral 6 foot (1.8m) Cable
- Circuitry Housed in a Miniature Case
- Made in the USA — This Patton equipment is designed by Patton engineers and built in our Gaithersburg, Maryland facility. Patton's American-made manufacturing process delivers high-quality networking solutions with reliability you can trust.
|
|
|
The Patton Model 2014FC-MT lets a synchronous RS-530 device communicate bi-directionally with a synchronous V.35 device. The Model 2014 requires no AC power or batteries to operate and supports data rates to 2 Mbps. Operating full or half duplex, the Model 2014 passes all necessary clocking and control signals, and is transparent to protocol.
The Patton Model 2014 connects directly to the synchronous RS-530 interface using a male or female DB-25 connector. A male or female M/34 connector at the end of an integral 6 foot (1.8m) cable plugs into the V.35 device.
Interfaces: EIA RS-530 DCE/RS-422 to CCITT V.35 DTE
Data Rates: Up to 2.048 Mbps
Transmission Mode: Full or half duplex
Protocol: Transparent to protocol
Clocking: Set by connected devices
Connectors: DB-25 male or female on RS-530 side, M/34 male or female on V.35 side
Temperature Range: 32-122°F (0-50°C)
Altitude: 0-15,000 feet
Humidity: Up to 95% non-condensing
Power Supply: None required, uses ultra low power from EIA data and control signals
Dimensions: 2.66L x 2.10H x 0.73W (6.8 x 5.3 x 1.9 cm)
Weight: 14 oz. (400 grams) including cable
|
|
|
|
