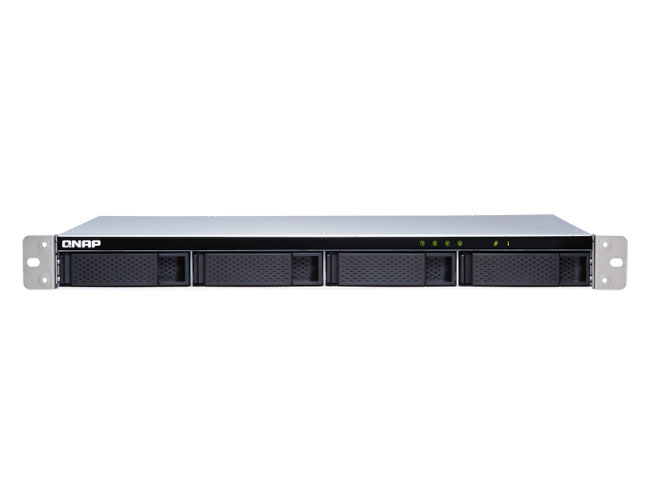

TL-R400S-US storage enclosure allows you to back up and expand your QNAP NAS, Windows® and Ubuntu® computers and servers. The TL-R400S features four 3.5-inch SATA 6Gb/s drive bays, the shallow rack design is perfect for installing the TL-R400S in a compact rack, or in areas with a lot of cabling. TL-R400S comes with a QXP PCIe card for connecting the enclosure using a SFF-8088 (or SFF-8644) cable. It provides reliable read/write performance for smooth storage and backup tasks.
TL-R400S-US
|
| Drive Bay |
4 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility |
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives |
| Audio Alert On/Off Switch |
|
| Form Factor |
1U Rackmount |
| Host Interface |
1 x SFF-8088 |
| LED Indicators |
HDD 1-4, Status, Link, Fan error |
| Buttons |
Power switch |
| Dimensions (HxWxD) |
43.9 × 438.9 × 291.1 mm |
| Weight (Net) |
3.98 kg |
| Weight (Gross) |
5.38 kg |
| Max. number of HDDs/SSDs supported |
4 |
| Hard Drive Type |
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives |
| Operating temperature |
0 - 40 °C (32°F - 104°F) |
| Relative Humidity |
5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit |
100W PSU, 100 - 240V |
| Power Consumption: Operating Mode, Typical |
25.07 W Tested fully polulated with Seagate ST6000NM0024 hard drives. |
| Fan Mode Switch |
(Auto, high, medium, low) |
| Fan |
2 x 40mm, 12VDC |
| Sound Level |
22.1 db(A) |
| System Warning |
Buzzer |
| Kensington Security Slot |
|
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications. Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS.
Designs and specifications are subject to change without notice.
|
