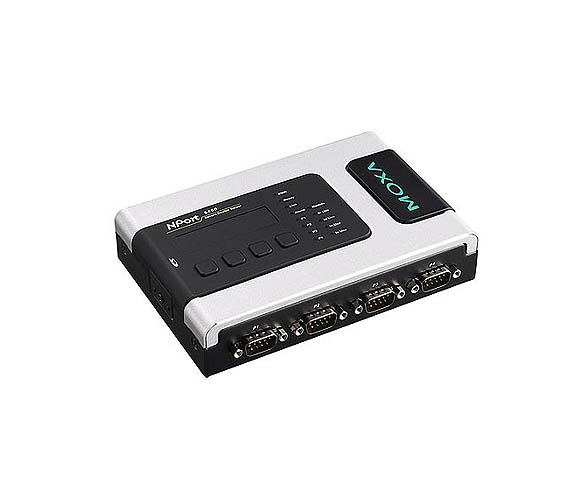

Moxa NPort 6450-T - 4 Port Terminal Device Server, US Plug, 3 in 1, 10/100M Ethernet, 12-48 VDC, w/o adapter
by MOXA
|
|
|
|
- LCD panel for easy IP address configuration (standard temp. models)
- Secure operation modes for Real COM, TCP Server, TCP Client, Pair Connection, Terminal, and Reverse Terminal
- Nonstandard baudrates supported with high precision
- Port buffers for storing serial data when the Ethernet is offline
- Supports IPv6
- Ethernet redundancy (STP/RSTP/Turbo Ring) with network module
- Generic serial commands supported in Command-by-Command mode
- Security features based on IEC 62443
|
|
|
The NPort 6450-T is a terminal server that uses the SSL and SSH protocols to transmit encrypted serial data over Ethernet. Up to 32 serial devices of any type can be connected to the NPort® 6000, using the same IP address. The Ethernet port can be configured for a normal or secure TCP/IP connection. The NPort® 6000 secure device servers are the right choice for applications that use large numbers of serial devices packed into a small space. Security breaches are intolerable and the NPort® 6000 Series ensures data transmission integrity with support for DES, 3DES, and AES encryption algorithms. Serial devices of any type can be connected to the NPort® 6000, and each serial port on the NPort® 6000 can be configured independently for RS-232, RS-422, or RS-485 transmission.
| • Ethernet Interface |
| Number of Ports |
1 |
| Speed |
10/100 Mbps, auto MDI/MDIX |
| Connector |
8-pin RJ45 |
| Magnetic Isolation |
1.5 kV built-in |
| • Optical Fiber Interface (with network module) |
 |
| • Serial Interface |
| Number of Ports |
4 |
| Serial Standards |
RS-232/422/485 |
| Connector |
DB9 male |
| RS-485 Data Direction Control |
ADDC® (Automatic Data Direction Control) |
| Serial Line Protection |
15 kV ESD protection for all signals |
| Console Port |
Serial port 1 doubles as RS-232 console port |
| • Serial Communication Parameters |
| Data Bits |
5, 6, 7, 8 |
| Stop Bits |
1, 1.5, 2 |
| Parity |
None, Even, Odd, Space, Mark |
| Flow Control |
RTS/CTS, DTR/DSR, XON/XOFF |
| Baudrate |
50 bps to 921.6 kbps (supports non-standard baudrates) |
| Pull High/Low Resistor for RS-485 |
1 kΩ, 150 kΩ |
| • Serial Signals |
| RS-232 |
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 |
Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w |
Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w |
Data+, Data-, GND |
| • Memory Expansion Slot |
| Slot Type |
SD socket (supports up to 2 GB) |
| • Software |
| Network Protocols |
ICMP, IPv4/v6, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1/V2c/V3, HTTP, SMTP, ARP, PPPoE |
| Security Protocols |
DES, 3DES, AES, SSH, SSL |
| Configuration Options |
Web Console, Serial Console, Telnet Console, Windows Search Utility |
| Windows Real COM Drivers |
Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Fixed TTY Drivers |
SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Linux Real TTY Drivers |
Linux 2.4.x, 2.6.x, 3.x |
| Management |
SNMP MIB-II |
| IP Routing |
Static, RIP-I, RIP-II |
| • Operation Modes |
| Standard |
Real COM, TCP Server, TCP Client, UDP, Pair Connection, RFC2217, Terminal, Reverse Telnet, Ethernet Modem, Printer, PPP, Disabled |
| Secure |
Secure Real COM, Secure TCP Server, Secure TCP Client, Secure Pair Connection, SSH, Reverse SSH |
| • Applications |
| Terminal Sessions |
8 sessions per port |
| • Physical Characteristics |
| Housing |
Metal |
| Weight |
1020 g |
| Dimensions |
Without ears: 158 x 103 x 35 mm (6.22 x 4.06 x 1.38 in)
With ears: 181 x 103 x 35 mm (7.13 x 4.06 x 1.38 in) |
| • Environmental Limits |
| Operating Temperature |
Standard Models: 0 to 55°C (32 to 131°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature |
-40 to 75°C (-40 to 167°F) |
| Ambient Relative Humidity |
5 to 95% (non-condensing) |
| Altitude |
Up to 2000 m |
| Note |
Please contact Moxa if you require products guaranteed to function properly at higher altitudes. |
| • Power Requirements |
| Input Voltage |
12 to 48 VDC |
| Power Consumption |
730 mA @ 12 V, 330 mA @ 24 V |
| Alarm Contact |
Relay output with current carrying capacity of 1 A @ 24 VDC |
| Power Line Protection |
1 kV burst (EN 61000-4-4: EFT/B), 0.5 kV surge (EN 61000-4-5) |
| • Standards and Certifications |
| Safety |
UL 60950-1, EN 60950-1 |
| EMC |
CE, FCC |
| EMI |
EN 55022 Class A, FCC Part 15 Subpart B Class A |
| EMS |
EN 55024,
EN 61000-4-2 (ESD) Level 2/3,
EN 61000-4-3 (RS) Level 2,
EN 61000-4-4 (EFT) Level 2,
EN 61000-4-5 (Surge) Level 2,
EN 61000-4-6 (CS) Level 2,
EN 61000-4-8 Level 1,
EN 61000-4-11 |
| Freefall |
IEC-68-2-6, IEC-68-2-34, IEC-68-2-32 |
| Vibration |
IEC-68-2-6, IEC-68-2-34 |
| Green Product |
RoHS, CRoHS, WEEE |
| • Reliability |
| Alert Tools |
Built-in buzzer and RTC (real-time clock) |
| Automatic Reboot Trigger |
Built-in WDT (watchdog timer) |
| MTBF (mean time between failures) |
120,354 hrs |
|
|
|
|
|
|
