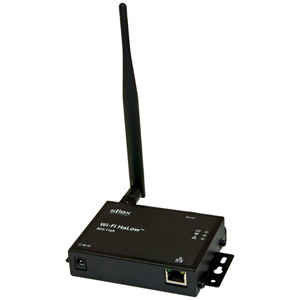

Silex AP-100AH-US - AP-100AH 802.11ah Access Point to connect up to 234 station, WPA3, 802.1x is planned by firmware update.
by Silex
|
|
|
|
AP-100AH-US is the first commercially available access point supporting IEEE’s 802.11ah wireless standard which is a long-range technology where a single access point can give you a range of up to 3 kilometers supporting up to 675 clients. The AP-100AH is all that you need to incorporate 802.11ah into your existing or new infrastructure. The AP-100AH supports communication with a RADIUS server to enable 802.11ah client devices that are capable of 802.1X authentication.
|
|
|
AP-100AH-US: A benefit of 802.11ah is the extended range, making it useful for rural communications and offloading cell phone tower traffic. Among other benefits, AP-100AH is a revolutionary access point combining performance with unequivocal scalability and range (675 simultaneous connections and up to 3 km range). It enables the 802.11ah network integration into your enterprise network which requires 802.1X authentication.
| Model number |
AP-100AH |
| Wired LAN |
Ethernet:
RJ-45 Connector x 1 10Base-T / 100Base-TX |
| Wireless Standard |
802.11ah (1x1) |
| Security |
Open, Enhanced Open, WPA3-Personal, WPA3-Enterprise (128-bit mode)
Encryption: AES-CCMP |
| Channels |
1 MHz, 2 MHz & 4 MHz |
Storage Temperature
Humidity |
-20 ~ + 80°C
20 ~ 90% RH |
Operating Temperature
Humidity |
0 ~ + 40°C
20% ~ 90% RH (non-condensing) |
| Range |
3km |
| Max # of Clients |
675 stations simultaneously |
| Power |
5.0V ± 5% DC Jack (5.5mm x 2.1mm) |
| Regulatory Compliance |
FCC, ISED |
| Supported Software |
AMC Manager® |
| Dimensions |
126mm x 75mm x 24mm |
| Warranty |
5 years |
|
|
|
|
