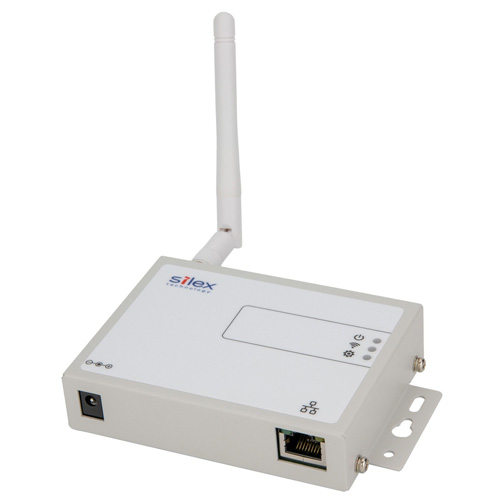

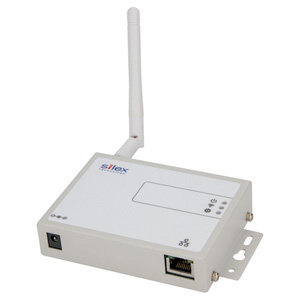

The BR-330AC-LP-US is the ideal solution to connect Ethernet IoT devices to a secure enterprise Wi-Fi network reliably. Thanks to its low power operation, the bridge can be powered by a battery pack for a longer duration, USB port(s) equipped on a Ethernet device etc... eliminating the dedicated AC power for the bridge.
The BR-330AC-LP is enabled by silex's Sx-590 intelligent module which has a superior track record in the medical industry to provide secure and reliable Wi-Fi connectivity to medical devices.
| Model number |
BR-330AC-LP |
| Wired LAN |
RJ-45 Connector x 1 10Base-T / 100Base-TX (Auto-detection) |
| Wireless standard |
Dual-band 802.11a/b/g/n/ac 1x1 |
| Wi-Fi security |
Authentication: WPA2-Enterprise, WPA-Enterprise , WPA2-Personal, WPA-Personal, Open
Encryption: WEP, AES, Auto |
| Channels |
2.4GHz bands
(US) CH1 - CH11
(EU) CH1-CH13
5GHz bands
(US) W52, W53, W56*, W58
(EU) W52, W53, W56**
W52: 36, 40, 44, 48
W53: 52, 56, 60, 64
W56: 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144
W58: 149, 153, 157, 161, 165
* Channel 120 - 128 is disabled to comply with Canadian regulation.
** Channel 144 is disabled for EU SKU |
Switch |
Push switch x 1 |
LED |
Power, WLAN, Status |
Storage Temperature
Humidity |
-20 ~ + 70°C
20 ~ 90% RH |
Operating Temperature
Humidity |
0 ~ + 50°C
20% ~ 80% RH (non-condensing) |
| Max # of Clients |
16 clients |
| Power |
5V DC Jack (EIAJ Class2) |
| Regulatory Compliance |
FCC Class B, ICES Class B, CE Class B, VCCI Class B, RoHS |
| Supported software |
AMC Manager® |
| Dimensions |
126mm x 76mm x 24mm |
| Weight |
255g (body) |
| Warranty |
5 years |
|
