Antaira GNP-0500 - 5-Port Industrial PoE+ Unmanaged Ethernet Switch, w/4*10/100Tx (30W/Port) + 1*10/100Tx
by ANTAIRA
|
|
|
|
- 5*10/100 with 4*IEEE 802.3af/at PoE+ (30W/Port)
- Support 90W Total PoE Power with 56VDC Power Input
- DIN-Rail or Wall Mountable
- Standard Operating Temperature: -10°C to 70°C
- TAA / NDAA Compliant
|
|
|

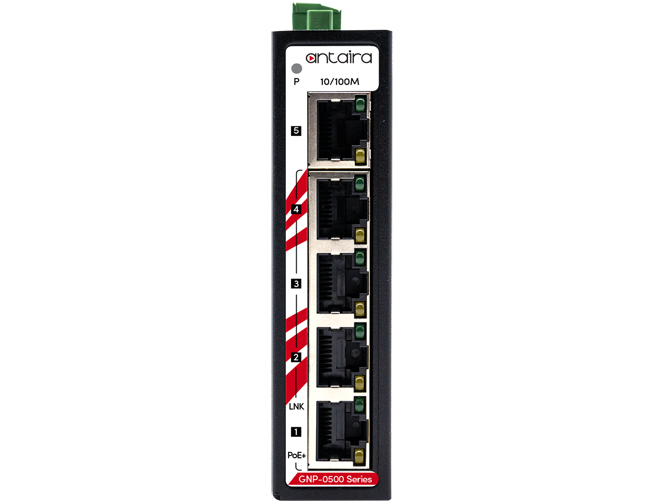

Antaira GNP-0500
Antaira Technologies’ GNP-0500 Series is an ultra-compact, rugged industrial 5-port 100Mbps Ethernet switch featuring four 30W PoE PSE ports. Designed for demanding environments, including hazardous industrial sites and centralized control stations, the GNP-0500 Series delivers reliable performance in a slim, space-saving form factor. Its compact design makes it well suited for industrial automation, IP surveillance, traffic monitoring, security, transportation, telecom, and other space-constrained applications requiring dependable network connectivity.
Specifications
- Total ports: 5
- RJ45 100M: 5
- 30W PoE+: 4
- PoE budget: 90W with 56 VDC input
- Power consumption: 1.68W @48 VDC full load without PoE
- Power input: 48-56 VDC
- Operating Temperature: -10~70ºC
- Housing: Metal, IP30
- Mounting: Wall Mount, DIN-Rail
- PoE LED indicator: yes
|
|
|
|
